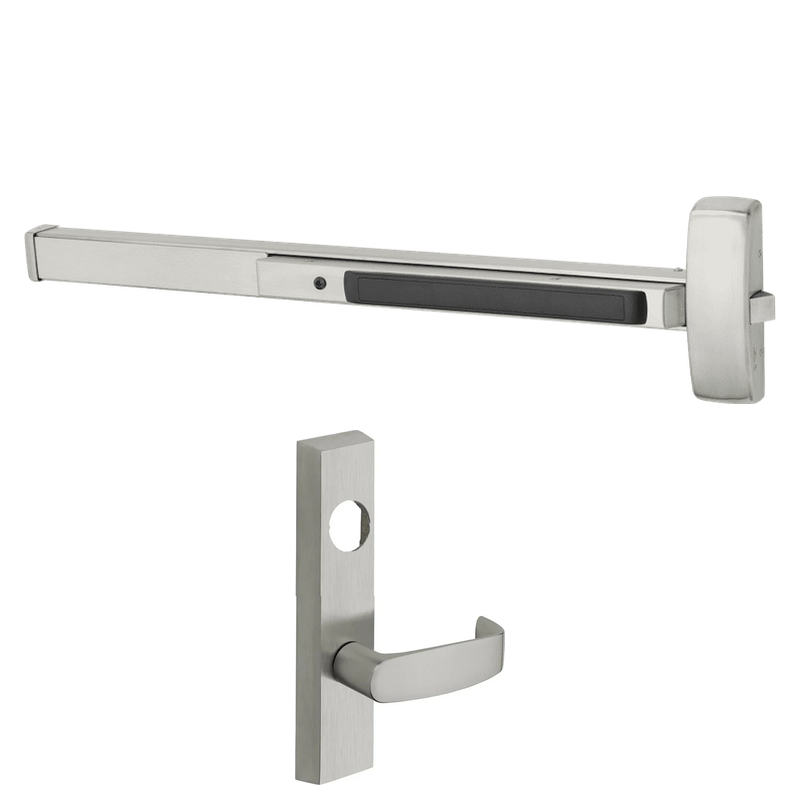

Sargent LC-56-8876-G-ETL-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-G-ETL-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings where access control and reliable egress matter. This fail secure model uses electric latch retraction (ELR) to remotely withdraw the latch bolt, allowing authorized remote access while maintaining secure locking when power is removed. Designed for wide doors measuring 43 to 48 inches, it operates on 24V and ships less cylinder for integration with your preferred keying system. The G trim (ET grouping) and hex key dogging make this a durable, code-compliant choice for schools, hospitals, offices, and other demanding environments requiring panic hardware with electronic control.

Features

• Electrified rim exit device from Sargent's 80 Series for grade 1 commercial performance.
• Electric latch retraction (ELR) remotely retracts the latch for controlled access.
• Fail secure operation keeps the device locked when power is lost for added security.
• Sized for wide door applications from 43 to 48 inches.
• Operates on 24V DC for compatibility with common access control systems.
• Supplied less cylinder to accommodate your existing keyway.
• Hex key dogging holds the latch retracted for push/pull operation during peak hours.
• G (ET) lever trim provides durable keyed access from the exterior.

Functional Details

The 8876 function combines night latch exterior trim with electric latch retraction. When energized, the latch retracts electronically to permit free access; when de-energized, the device remains fail secure, requiring a key to retract the latch from the outside while free egress is always maintained from the inside.

• Electric latch retraction (ELR) for momentary or continuous remote unlocking.
• Fail secure: power off locks the lever, key retracts the latch.
• Free egress at all times from the push side.
