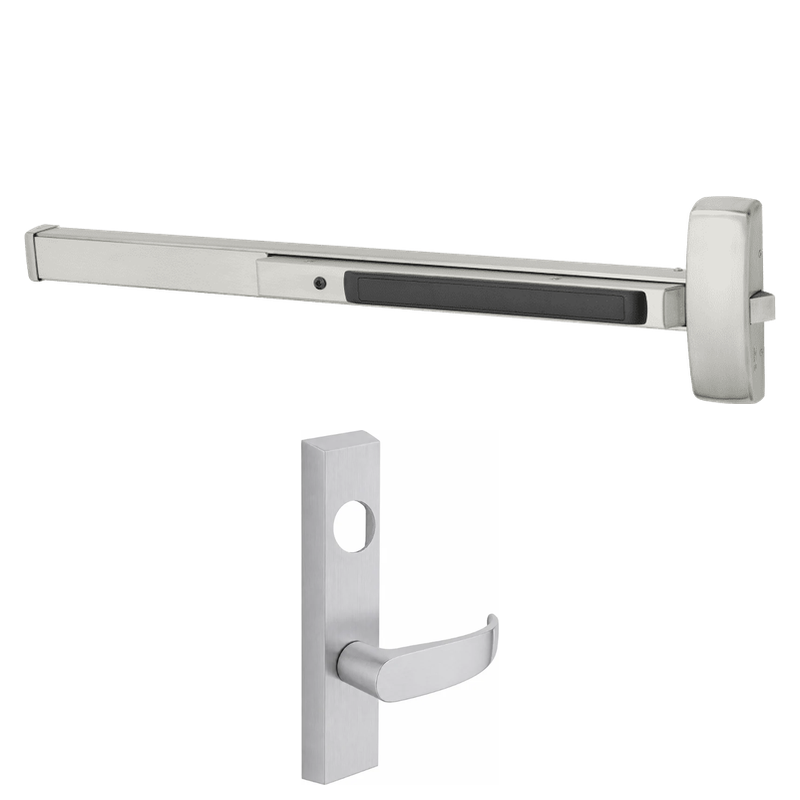

Sargent LC-56-8876-G-ETP-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 43-48" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-G-ETP-24V is an electrified rim exit device built for high-traffic commercial openings that require reliable access control and dependable egress. Designed to fit door widths from 43 to 48 inches, this unit features electric latch retraction (ELR) powered at 24V, allowing the latch to retract electronically for remote unlocking or momentary free passage. It operates in a fail secure configuration, so the outside lever remains locked when power is lost while free egress is always available from the inside. The ETP trim with key retract function and hex key dogging adds versatility, and this model ships less cylinder for field-fitted keying.

Features

• Electric latch retraction operates at 24V for remote and controlled unlocking.
• Fail secure operation keeps the outside lever locked during a power outage.
• Sized for door widths between 43 and 48 inches.
• ETP escutcheon trim with key-retracts-latch functionality.
• Hex key dogging allows the device to be held in a dogged state for push/pull operation.
• Supplied less cylinder to accommodate custom keying requirements.
• Free egress at all times from the interior side for life-safety compliance.

Functional Details

The electric latch retraction function uses a 24V solenoid to pull the latchbolt back electronically, enabling momentary or continuous unlocked access when energized. In fail secure mode, removing power returns the device to a locked state on the exterior while maintaining full egress from inside.

• Fail secure, power off locks lever.
• Key retracts latch.
• Electric latch retraction.
• Hex key dogging.

Included Components

This order includes the 56-8876 electrified rim exit device chassis, the ETP escutcheon lever trim, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
