Sargent LC-56-8876-J-ETL-12V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-J-ETL-12V is a heavy-duty electrified rim exit device engineered for access-controlled openings that demand reliable security and smooth egress. Built with electric latch retraction (ELR) and a fail secure design, it keeps the opening locked when power is lost while still allowing free exit at all times from the inside. Rated for door widths between 37" and 42", this device ships less cylinder, giving installers the flexibility to match existing keying systems with a J-series (ET) lever trim. The 12V operation and hex key dogging make it a dependable choice for schools, offices, and commercial facilities requiring remote latch control.

Features

• Electrified rim exit device from Sargent's 8800 Series for durable, high-traffic performance.
• Fail secure operation keeps the outside lever locked when power is removed.
• Electric latch retraction (ELR) allows remote latch control and momentary or sustained unlatching.
• Designed for door widths of 37" to 42".
• Ships less cylinder to accommodate existing or specified keying.
• Includes J-series (ET) lever trim for controlled outside access.
• 12-volt operation for compatibility with common access control systems.
• Hex key dogging holds the pushbar depressed for push/pull operation during high-traffic periods.

Functional Details

As a fail secure device with electric latch retraction, the latch stays projected and the outside lever remains locked when power is off. Applying power retracts the latch electrically, allowing remote entry, while the key or inside pushbar always permits egress.

• Fail secure: power off locks the lever.
• Key retracts latch for outside access.
• Electric latch retraction for remote operation.
• Free egress at all times from the inside.

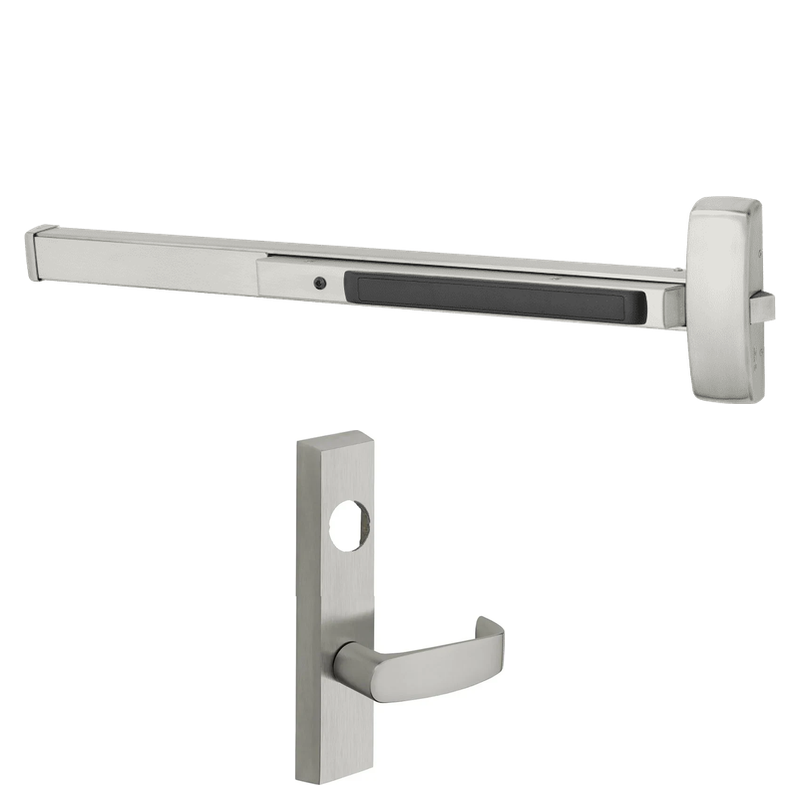

Included Components

This unit includes the 8876 rim exit device chassis with ELR mechanism and the J-series ET lever trim. A compatible rim cylinder must be ordered separately since the device ships less cylinder.
