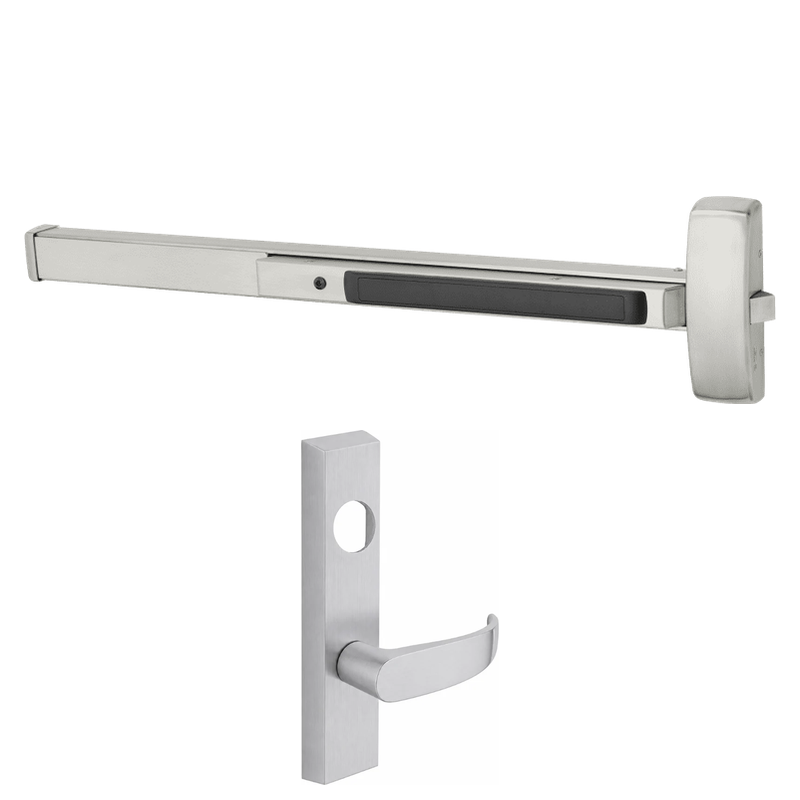

Sargent LC-56-8876-J-ETP-12V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-J-ETP-12V is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that demand reliable access control. Built around Sargent's proven 8800 Series platform, it features 56 electric latch retraction for seamless integration with card readers, keypads, and remote release systems. Configured as fail secure, the device keeps the outside lever locked when power is removed, maintaining security during outages while still allowing free egress at all times. Designed for 37" to 42" door widths and supplied less cylinder, this unit pairs the ETP lever trim with 12-volt operation and hex key dogging for dependable everyday performance in schools, offices, and institutional facilities.

Features

• Electric latch retraction allows remote unlatching for controlled access and momentary or sustained release.
• Fail secure operation keeps the outside lever locked when power is interrupted for continued security.
• Grade 1 rim exit device rated for demanding, high-use commercial applications.
• ETP lever trim provides a durable keyed outside trim option.
• Hex key dogging holds the latch retracted for push-pull operation during peak hours.
• Sized for 37" to 42" door widths and supplied less cylinder for field cylinder matching.
• Free egress is always available by depressing the push bar, regardless of power status.

Functional Details

The 56 electric latch retraction function uses an internal motor to retract the latch electrically, permitting remote and automated access control while the fail secure design relocks the outside trim on loss of power. Egress through the device remains unimpeded at all times.

• Fail Secure: Power off locks lever, key retracts latch.
• Electric latch retraction retracts the latchbolt electrically for remote operation.
• 12V operation.

Arm Type Details

This device uses the J lever design on the ETP electrified trim, offering a comfortable, ADA-compliant lever pull for keyed outside access when the latch is not retracted.
