Sargent LC-56-8876-J-ETP-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, Electric Latch Retraction, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-56-8876-J-ETP-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require electric latch retraction. Designed for door widths between 37 and 42 inches, it operates in a fail secure configuration, so the lever stays locked when power is removed while free egress is always available from the inside. The 24V electric latch retraction allows remote unlatching for access control integration, and the ETP trim with J lever provides reliable keyed entry. Supplied less cylinder to accommodate your preferred keying, this device combines durable construction with dependable performance for schools, healthcare, and institutional facilities.

Features

• Electrified rim exit device with 24V electric latch retraction for remote unlocking and access control integration.
• Fail secure operation keeps the outside lever locked when power is interrupted.
• Sized for door widths from 37 to 42 inches.
• ETP escutcheon trim paired with the J lever design for keyed access.
• Hex key dogging allows the latch to be held retracted for push/pull operation during peak hours.
• Shipped less cylinder to let you match existing keying systems.
• Provides free egress at all times for life-safety compliance.

Functional Details

This device uses electric latch retraction (ELR) to pull back the latch electrically, permitting momentary or sustained remote release through a connected access control system. In the fail secure mode, loss of power leaves the exterior trim locked, requiring a key to gain entry while egress through the device remains unaffected.

• Fail secure: power off locks outside lever.
• Key retracts latch for entry.
• Electric latch retraction operated at 24V.
• Hex key dogging holds latch retracted for push/pull function.

Included Components

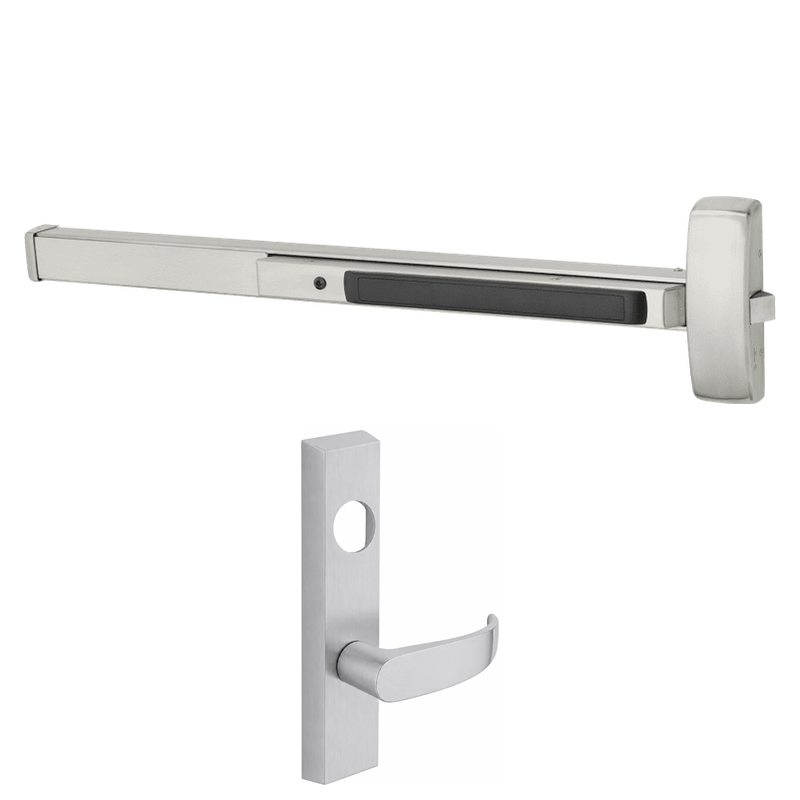

The package includes the 8800 series rim exit device chassis with electric latch retraction, the ETP escutcheon trim with J lever, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
