Description

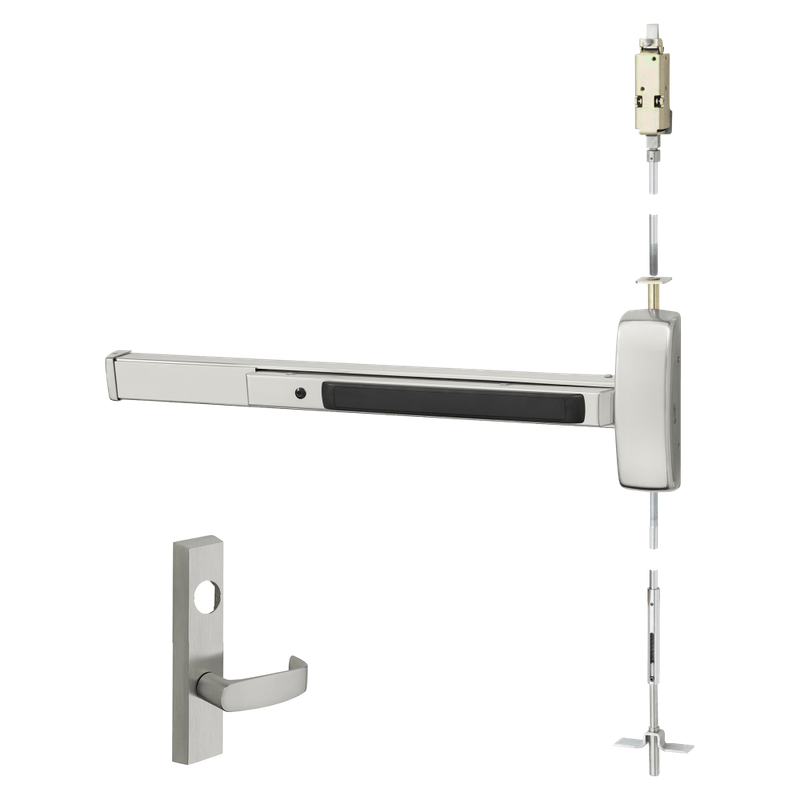

Sargent LC-59-MD8606F-ETL-84-US32D Electrified Concealed Vertical Rod Exit Device, Storeroom, For 33-36" Wd, 84" Ht Door, Delayed Egress
The Sargent LC-59-MD8606F-ETL-84-US32D is an electrified concealed vertical rod exit device engineered for demanding commercial openings requiring delayed egress control. Built for 33" to 36" wide doors up to 84" in height, this storeroom-function device combines heavy-duty Grade 1 performance with Sargent's reliable MD8600 series platform. The ETL (Electric Trim Lock) and delayed egress capabilities make it ideal for applications where life safety, access control, and controlled exiting must work together. Finished in US32D (satin stainless steel), it delivers durable, corrosion-resistant operation while meeting the rigorous standards expected in schools, healthcare, government, and institutional environments.
Features
- Concealed vertical rod design provides a clean appearance with top and bottom latching for secure two-point locking.
- Storeroom function keeps the outside trim locked at all times while allowing free egress.
- Delayed egress operation restricts immediate exit for a controlled time period to enhance security and life safety compliance.
- Electrified trim allows remote control and integration with access control systems.
- Sized for 33" to 36" wide doors and 84" tall openings.
- Finished in US32D satin stainless steel for durability and corrosion resistance.
Functional Details
As a storeroom (F-function) delayed egress device, the outside trim remains continuously locked and requires a key or valid credential for entry, while the inside push rail controls exiting. The delayed egress feature introduces a timed delay before the door releases, giving staff time to respond while remaining compliant with life safety codes.
- Storeroom function: latchbolt retracted by key from outside; outside lever is always fixed (rigid).
- Delayed egress initiates an audible alarm and timed delay sequence when the push rail is activated.
- Free egress is permitted after the preset delay period or upon fire alarm signal.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | LC-59-MD8606F-ETL-84 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | Made in USA |
| Unit of Measure | Each |
| Device Type | Concealed Vertical Rod Exit Device |
| Function | Storeroom / Delayed Egress |
| Finish | US32D (Satin Stainless Steel) |
| ANSI Number | A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Door Width Range | 33" to 36" |
|---|---|
| Door Height | 84" |
| Latching Points | Top and Bottom (Two-point) |
| Minimum Stile Width | Concealed vertical rod compatible stile |
| Voltage | 24 VDC |
| Delayed Egress Delay Time | 15 seconds (adjustable per code) |
| Nuisance Delay | 1 to 3 seconds (adjustable) |
| Mounting | Concealed within door |
| UL Listing | UL/cUL Listed Panic Hardware |
| Fire Rating | Compatible with fire-rated assemblies |
