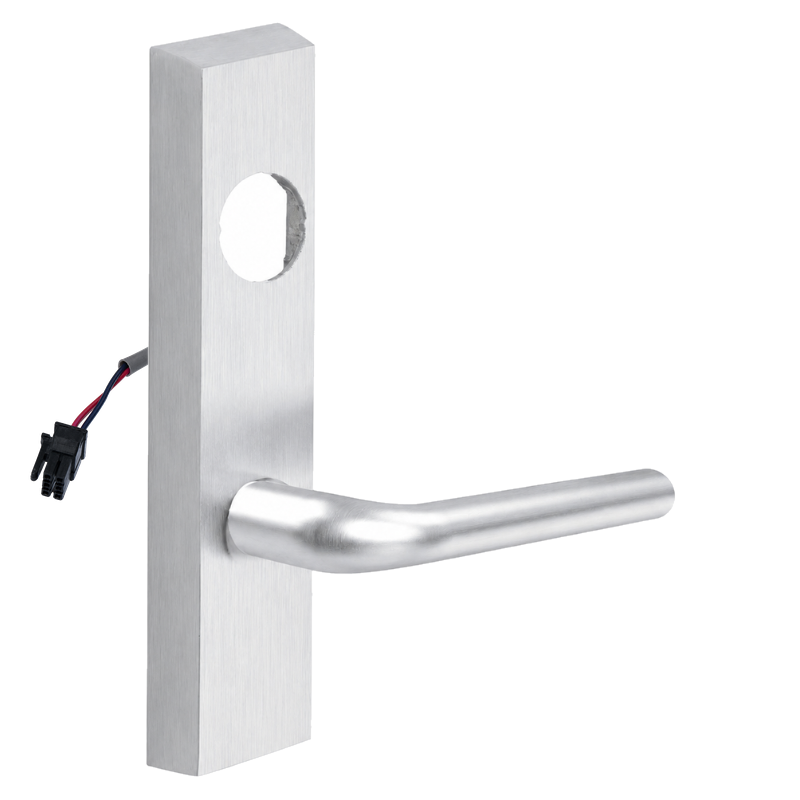

Sargent LC-775-8-ETME-24V Electrified Lever Trim, "ET" ME Lever, Key Retracts Latch, Fail Safe, 12V, For 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-775-8-ETMI-12V electrified lever trim is designed for use with Sargent 80 Series exit devices and provides controlled outside access in a durable, field-proven trim package. This fail safe configuration unlocks the lever when power is off, while the key cylinder retracts the latch for mechanical entry. Built for rim and mortise applications, the 775 Series trim is non-handed and supports standard door thicknesses from 1-3/4" to 2-1/4". It is UL listed, fire rated, and BAA qualified, making it a dependable choice for commercial openings that require electrified access control with exit device compatibility.

Features

• Electrified lever trim for Sargent 80 Series exit devices.

• Fail safe function unlocks the lever when power is removed.

• Key operation retracts the latch for mechanical entry.

• Configured with MI lever design and ET trim style.

• Non-handed construction simplifies installation.

• Compatible with standard 1-3/4" to 2-1/4" door thicknesses.

• Suitable for rim and mortise exit device applications.

• UL listed and fire rated for labeled openings.

• BAA qualified for applicable procurement requirements.

• Offered less cylinder.

Functional Details

This electrified trim is configured as fail safe, meaning the outside lever remains unlocked when power is off. In normal access control use, the trim works with the exit device to manage entry from the exterior side, while the key cylinder provides mechanical latch retraction when authorized keyed access is needed.

• Fail safe - power off, unlocks lever

• Key retracts latch

• For use with 80 Series exit devices

Included Components

This trim is supplied less cylinder. Cylinder, exit device, and related door hardware are ordered separately.
