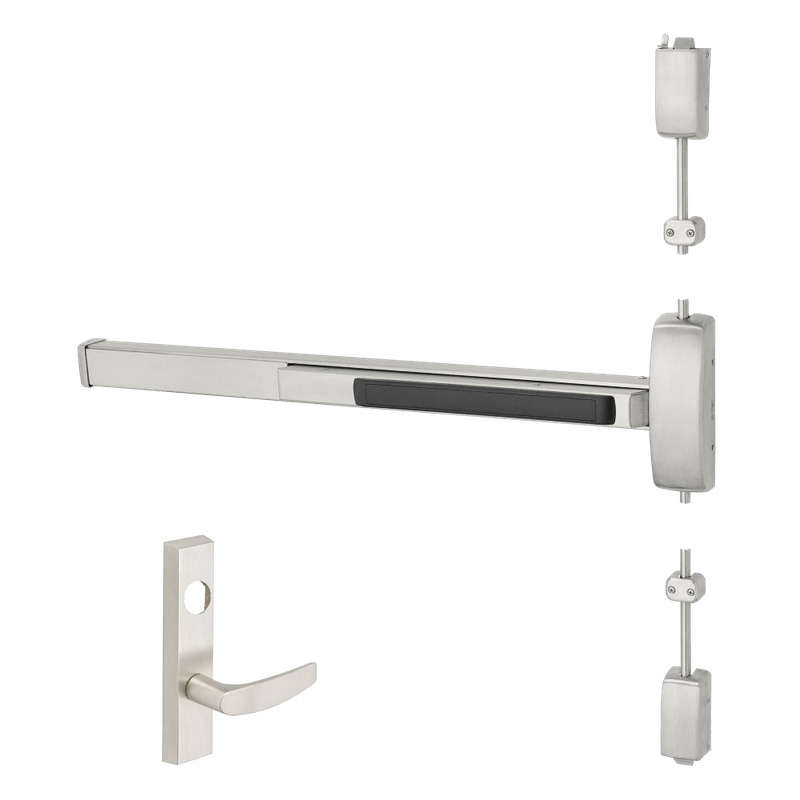

Sargent LC-8706-F-ETB-84 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETB-84 is a Grade 1 surface vertical rod exit device engineered for demanding commercial openings. Configured for storeroom function with the ETB lever trim, it provides secure, controlled access while maintaining reliable egress. This unit is sized for doors measuring 33" to 36" wide and 84" in height, and ships fire-rated (F) to support labeled door assemblies. The "LC" designation means the device is supplied less cylinder, allowing you to specify your own mortise cylinder to match an existing keying system. Built for heavy traffic and long service life, it's a dependable choice for schools, hospitals, offices, and other institutional buildings.

Features

• Grade 1 surface-mounted vertical rod exit device rated for high-use commercial applications.
• Fire-rated (F) construction suitable for labeled fire door assemblies.
• Storeroom function keeps the outside lever locked while free egress is always available from the inside.
• ETB lever trim offers a durable, ergonomic grip for controlled entry.
• Designed for doors 33" to 36" wide and up to 84" tall.
• Supplied less cylinder for integration with your preferred keying system.

Functional Details

The storeroom function (06) secures the outside trim at all times, requiring a key to retract the latch for entry. The door relocks automatically, and the inside lever or push rail always allows immediate free egress for life safety compliance.

• Outside lever is always locked.
• Key retracts the latch bolt for momentary entry.
• Latch automatically relocks when the door closes.
• Free egress at all times from the inside.

Arm Type Details

As a surface vertical rod device, the top and bottom latches engage strikes mounted at the head and threshold of the frame. Pushing the touchpad simultaneously retracts both rods, releasing the door for exit. This two-point latching configuration provides added security and improved alignment on taller door openings.

Included Components

Device ships with the exit chassis, top and bottom vertical rod assemblies, ETB lever trim, mounting hardware, and strikes. A mortise cylinder is not included and must be ordered separately.
