Description

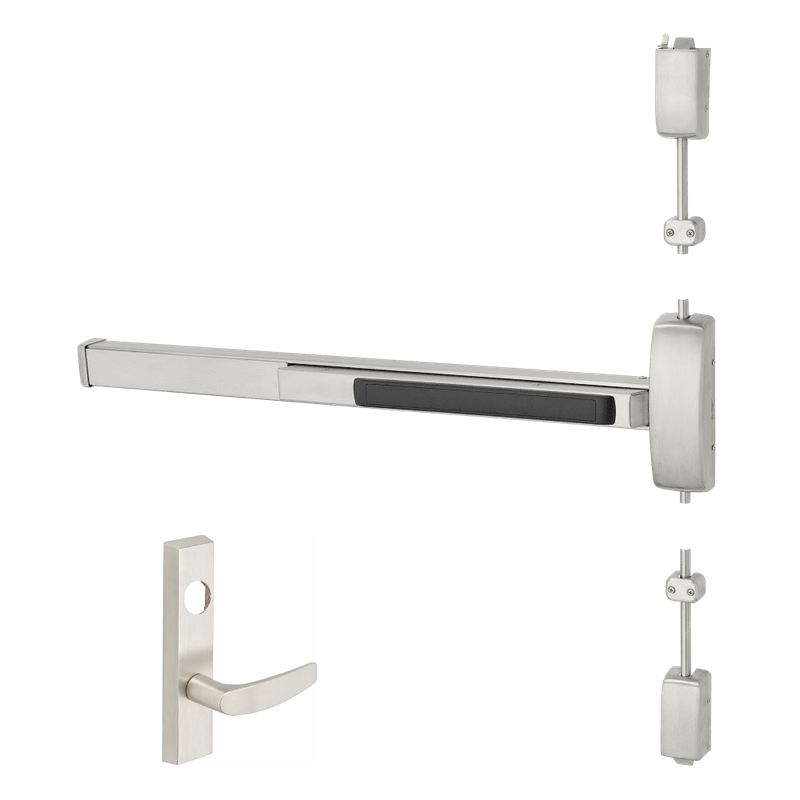

Sargent LC-8706-F-ETB-96 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Wd, 96" Ht Door, Less Cylinder
The Sargent LC-8706-F-ETB-96 is a surface-mounted vertical rod exit device engineered for fire-rated openings that demand reliable, high-traffic performance. Configured for storeroom function with the ETB lever trim, this device keeps the outside lever locked at all times while allowing free egress through the push rail at any moment. Built to accommodate doors measuring 33 to 36 inches wide and up to 96 inches tall, it ships less cylinder (LC) so you can specify the mortise cylinder that matches your keying system. As part of Sargent's rugged 80 Series, it delivers the durability and code compliance expected in commercial and institutional settings.
Features
- Surface-mounted vertical rod design provides secure top and bottom latching for added door control.
- Fire-rated (F) construction suits labeled openings where life-safety compliance is required.
- Storeroom function keeps the outside lever locked while permitting free egress at all times.
- ETB lever trim offers a comfortable, ADA-friendly grip for everyday use.
- Less cylinder (LC) configuration lets you integrate the device into your existing keyway.
- Sized for 33–36" wide doors up to 96" in height.
- Heavy-duty internal components built for demanding high-traffic environments.
Functional Details
The storeroom function (06) ensures the exterior lever remains locked continuously, requiring a key to retract the latch from the outside, while the inside push rail always allows immediate, free exit.
- Outside trim is always locked.
- Key retracts latch for momentary access.
- Free egress at all times from the inside.
Arm Type Details
This is a surface vertical rod (SVR) device. The exposed vertical rods run along the door face and engage latches at the top and bottom, securing the door at two points for improved alignment and resistance to forced entry.
Included Components
The device includes the push rail mechanism, top and bottom surface-mounted vertical rods, top and bottom latches, and the ETB lever trim. A mortise cylinder is not included and must be ordered separately.
Product Specifications
| Manufacturer | Sargent |
| SKU | LC-8706-F-ETB-96 |
| Device Series | 80 Series |
| Grade | ANSI/BHMA Grade 1 |
| Origin | United States |
| Unit of Measure | Each |
| UL Listing Type | Fire Exit Hardware |
| ANSI Number | A156.3 |
| Function | Storeroom (06) |
| Cylinder | Less Cylinder (field supplied) |
| Limited Warranty | Yes |
Technical Specifications
| Device Type | Surface Vertical Rod Exit Device |
| Door Width Range | 33" to 36" |
| Door Height | 96" |
| Trim Type | ETB Lever |
| Mounting | Surface Mounted |
| Fire Rating | Fire Rated (F) |
| Latching Points | Top and Bottom |
| Cylinder Type | Mortise (not included) |
| Handing | Non-handed |
| Rod Type | Exposed Vertical Rod |
