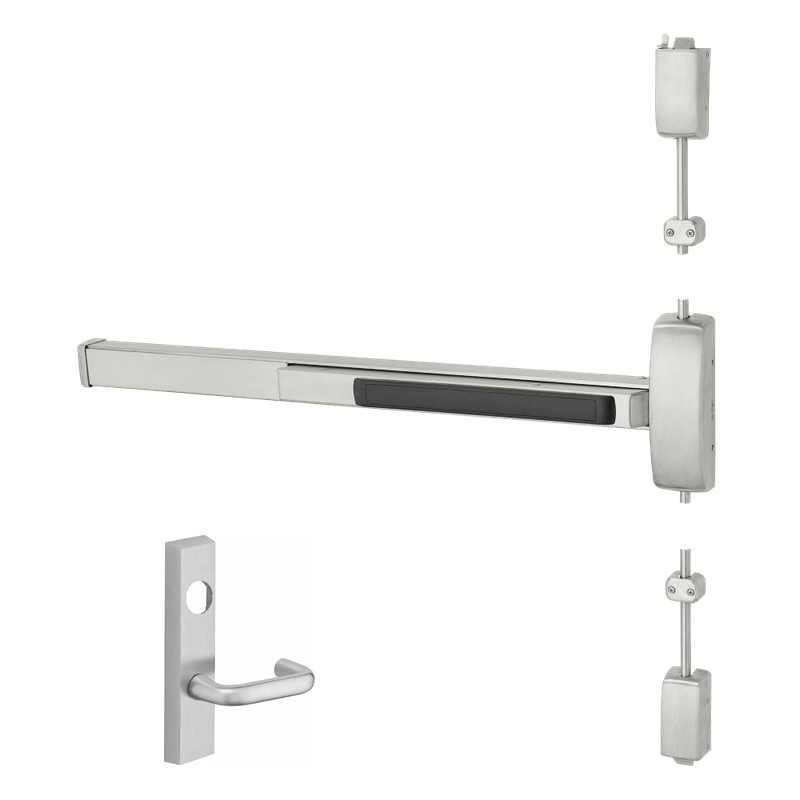

Sargent LC-8706-F-ETJ-96 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETJ-96 is a surface-mounted vertical rod exit device built for dependable performance on tall openings up to 96 inches in height and door widths from 33 to 36 inches. Configured for storeroom function with the ETJ lever trim, it provides secure, key-controlled access while allowing free egress at all times. This model ships less cylinder, giving you the flexibility to match your facility's existing keying system. Fire-rated (F) and engineered to Grade 1 standards, it's a solid choice for schools, hospitals, commercial buildings, and other high-traffic environments where reliability and life-safety compliance are essential.

Features

• Surface vertical rod design mounts on the face of the door for straightforward installation and servicing.
• Fire-rated (F) construction suitable for labeled door and frame assemblies.
• Storeroom function keeps the outside lever locked at all times while permitting free egress.
• Sized for doors 33 to 36 inches wide and up to 96 inches tall.
• Supplied less cylinder for compatibility with your preferred cylinder and keyway.
• ETJ lever trim provides a comfortable, ADA-friendly operating grip.
• Grade 1 rating ensures heavy-duty durability under demanding daily use.

Functional Details

The storeroom function (06) secures the exterior trim so entry always requires a key, while the interior push-rail allows immediate, unobstructed exit for life safety.

• Latchbolt operated by key from outside; key retracts latchbolt.
• Latchbolt operated by lever inside at all times.
• Outside lever is always fixed (rigid).
• Free egress at all times by depressing the touchbar.

Arm Type Details

This device uses surface-mounted top and bottom vertical rods that engage strikes at the door's head and threshold, securing the opening at two points for added stability on tall doors.

Included Components

Exit device chassis with touchbar, surface top and bottom vertical rods, ETJ lever trim, and mounting hardware. Cylinder is not included and must be ordered separately.
