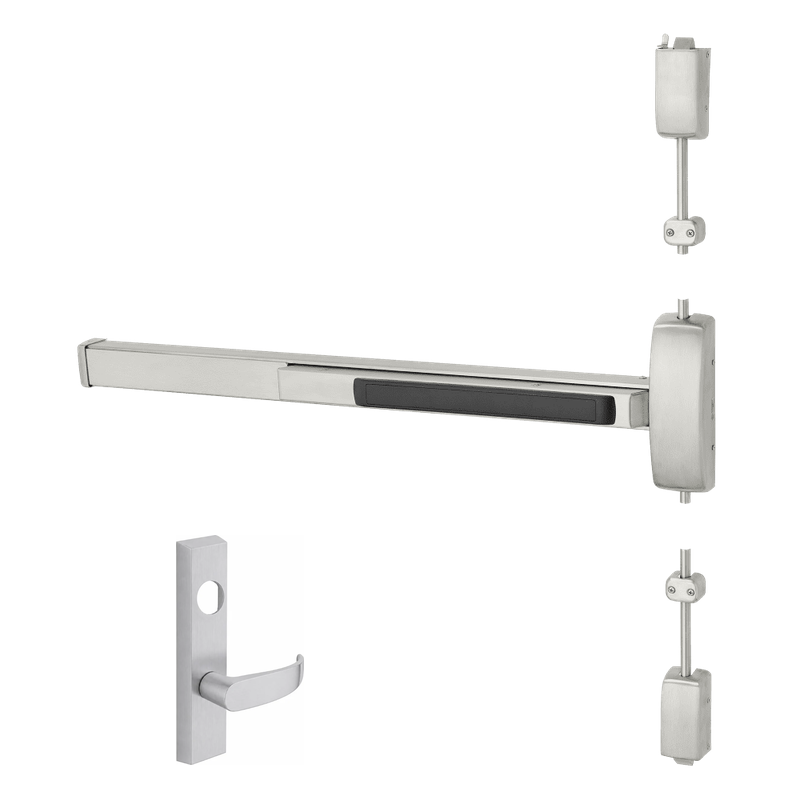

Sargent LC-8706-F-ETP-84 Surface Vertical Rod Exit Device, Storeroom, For 33-36" Width, 84" Ht Door, Less Cylinder

The Sargent LC-8706-F-ETP-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Configured for storeroom function with the ETP lever trim, it provides secure, controlled access on doors measuring 33" to 36" wide and 84" tall. The "LC" designation means the device ships less cylinder, giving installers the flexibility to key it into an existing master system. Built to Grade 1 standards and fire-rated (F), it delivers reliable panic egress and long-term durability in schools, hospitals, office buildings, and other high-traffic environments where safety and code compliance are essential.

Features

• Surface-mounted vertical rod design provides secure two-point latching at the top and bottom of the door.
• Fire-rated (F) construction suited for labeled openings where panic hardware is required.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• Sized for doors 33" to 36" wide and up to 84" in height.
• Supplied less cylinder (LC) for integration into existing keying systems.
• ETP lever trim offers a durable, ergonomic grip for everyday use.
• Grade 1 rating ensures heavy-duty performance in high-traffic applications.

Functional Details

The storeroom function keeps the exterior trim locked continuously. A key is required to retract the latch from the outside for momentary access, and the door relocks automatically once closed. Pushing the touchbar from the inside always allows free, unimpeded egress.

• Outside lever is always locked.
• Key unlocks latch for momentary entry.
• Inside touchbar always allows free egress.

Arm Type Details

The ETP trim is a decorative lever-style escutcheon trim. It pairs with the exit device to provide keyed access from the pull side while maintaining a clean, uniform appearance that complements other Sargent hardware.
