Sargent LC-8706-G-ETB-84 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETB-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial and institutional openings. Built for doors measuring 43 to 48 inches wide and 84 inches tall, it delivers reliable storeroom-function operation where security and controlled access matter most. The device pairs the durable 8700 series chassis with the ETB lever trim and ships less cylinder, giving installers the flexibility to specify their preferred mortise cylinder. With its Grade 1 rating and ANSI/BHMA certification, this exit device is a dependable choice for schools, hospitals, offices, and other high-traffic environments requiring secure egress.

Features

• Surface-mounted vertical rod design provides top and bottom latching for added security on tall openings.
• Storeroom function keeps the outside lever locked at all times while allowing free egress from the inside.
• Sized specifically for doors 43 to 48 inches wide and 84 inches in height.
• Supplied less cylinder, allowing the installer to match an existing keying system.
• ETB escutcheon lever trim offers a clean, durable appearance with comfortable operation.
• Grade 1 construction built for heavy use and long service life.

Functional Details

The storeroom function (G) keeps the exterior lever continuously locked. A key is required to retract the latch from the outside, while the interior pushbar always permits free egress, making it ideal for secured storerooms, utility areas, and controlled-access rooms.

• Outside lever is always locked.
• Key retracts latch for entry.
• Inside device always allows free egress.

Arm Type Details

This device uses surface-mounted vertical rods that engage latch points at the top and bottom of the door, distributing holding force along the full height of the opening for enhanced security on tall doors.

Included Components

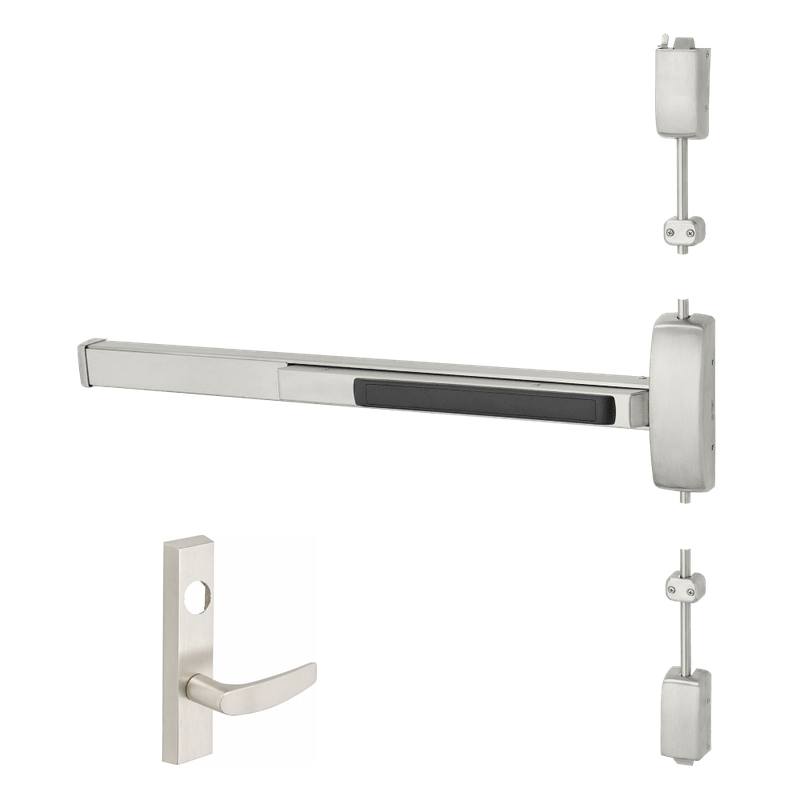

The exit device ships with the 8700 chassis, surface vertical rods, top and bottom latches, and the ETB lever trim. A mortise cylinder is not included and must be ordered separately.
