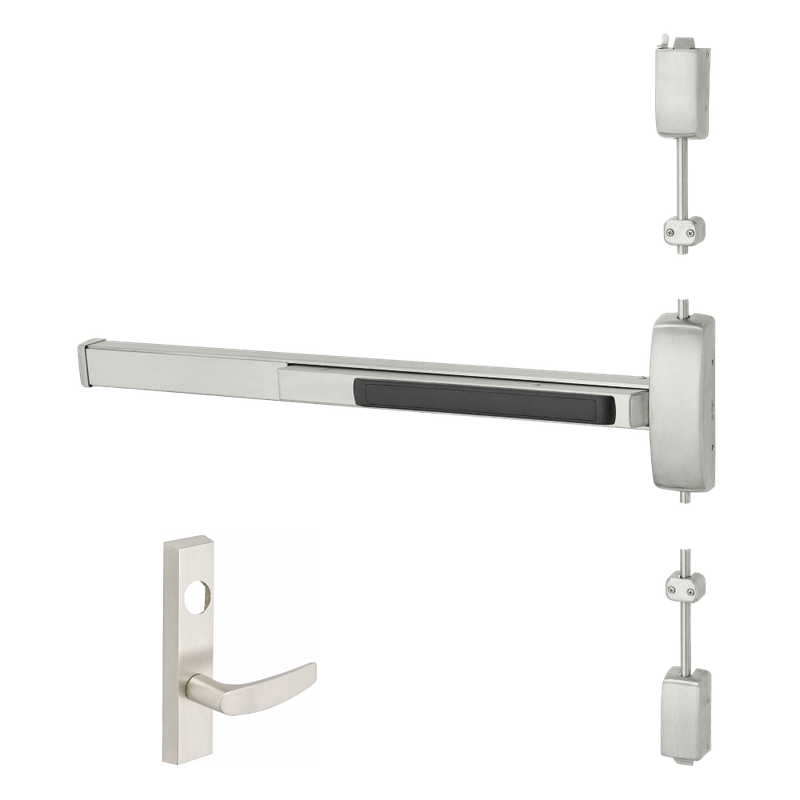

Sargent LC-8706-G-ETB-96 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 96" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETB-96 is a surface-mounted vertical rod exit device built for heavy-duty commercial openings that demand reliable security and dependable egress. Designed for doors measuring 43" to 48" wide and up to 96" tall, this storeroom-function device keeps the outside lever locked at all times while allowing free exit from the interior at any moment. The "LC" designation means it ships less cylinder, giving you the flexibility to pair it with your facility's preferred keying system. With the durable ETB escutcheon trim and G lever design, it delivers the long-lasting performance that institutional and commercial applications require.

Features

• Surface-mounted vertical rod configuration provides top and bottom latching for added security on tall doors.
• Storeroom function keeps the outside lever locked while permitting unrestricted egress from the inside.
• Sized specifically for doors 43" to 48" wide and 96" in height.
• Supplied less cylinder (LC) for easy integration with existing keying systems.
• ETB escutcheon trim with G lever for a clean, durable finish.
• Built for high-traffic commercial, institutional, and educational environments.

Functional Details

The storeroom function (06) provides a secure yet convenient opening solution. The latch is retracted by a key from the outside or by the inside lever, and the outside lever remains locked at all times, requiring a key for entry.

• Latch bolt by key outside when the outside lever is locked.
• Outside lever is always locked.
• Key retracts latch bolt.
• Inside lever always free for immediate egress.

Arm Type Details

This device uses a surface vertical rod arrangement, with latching rods running vertically up and down the door face to engage strikes at the top and bottom of the frame. This dual-point latching improves door security and alignment on tall openings compared to single-point rim devices.

Included Components

The device ships with the exit device chassis, top and bottom surface-mounted vertical rods and latches, ETB escutcheon trim with G lever, and mounting hardware. A cylinder is not included and must be ordered separately.
