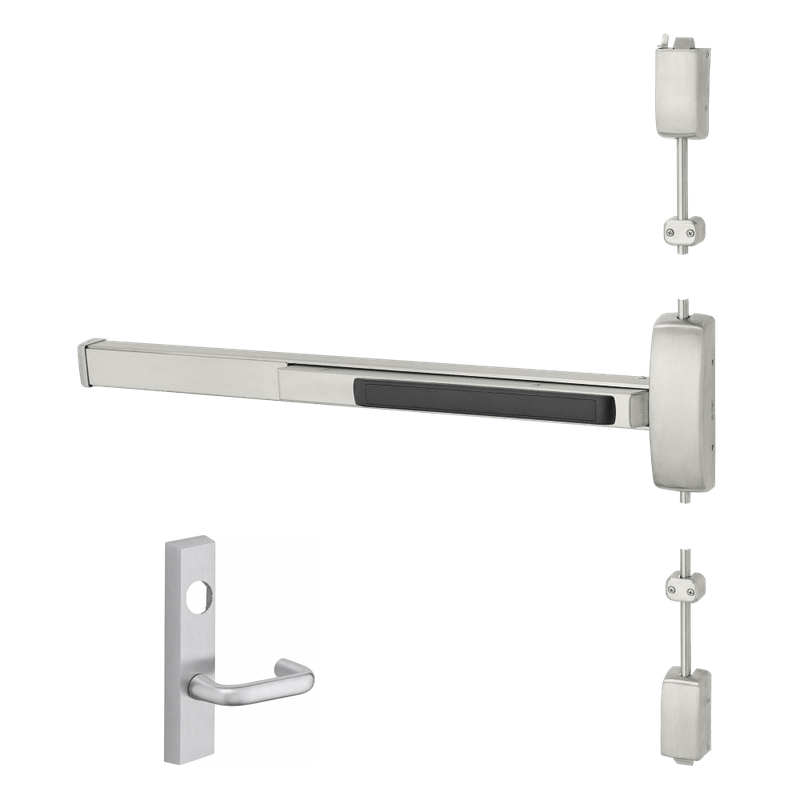

Sargent LC-8706-G-ETJ-84 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETJ-84 is a surface-mounted vertical rod exit device engineered for demanding commercial openings up to 43-48" wide on 84" tall doors. Configured for storeroom function with the ETJ lever trim, it provides secure access control while delivering reliable panic egress. The "LC" designation means this device ships less cylinder, allowing you to specify your preferred mortise cylinder to match your facility's keying system. Part of Sargent's heavy-duty 8700 series, this exit device is built to withstand high-traffic environments in schools, hospitals, and institutional buildings where durability and dependable operation are essential.

Features

• Surface vertical rod design provides secure two-point latching at the top and bottom of the door.
• Storeroom function keeps the outside lever locked at all times while allowing free egress from the inside.
• Sized for wide doors from 43" to 48" and tall 84" door heights.
• Ships less cylinder for flexible integration with existing keying systems.
• Grade 1 construction rated for heavy commercial and institutional use.
• ETJ lever trim offers a comfortable, ADA-compliant grip for everyday operation.

Functional Details

The storeroom (G) function allows the outside lever to remain locked at all times. Entry requires a key, and turning the key retracts the latch for momentary access. The inside push bar always permits free, immediate egress for safe exit.

• Outside lever is always locked.
• Key retracts latch for entry.
• Inside lever or push bar always allows free egress.

Arm Type Details

This device uses a surface-mounted vertical rod configuration, with rods running the full height of the door to engage latches at the top and bottom. This two-point latching provides added security and stability compared to a single-point rim device, making it well suited for taller and heavier doors.

Included Components

The device includes the surface vertical rod exit chassis, ETJ lever trim, top and bottom latch assemblies, and mounting hardware. A compatible mortise cylinder is required but not included.
