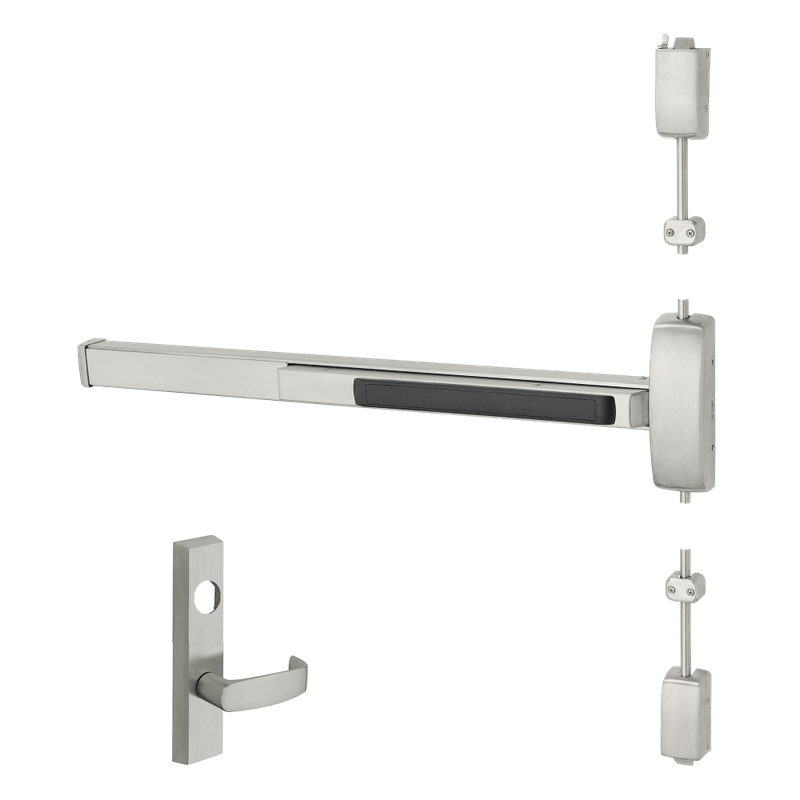

Sargent LC-8706-G-ETL-84 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETL-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial and institutional openings. Configured for storeroom function, it keeps the outside lever locked at all times while allowing free egress through the push rail, with momentary access granted by key. Built for wide doors measuring 43 to 48 inches and standard 84-inch door heights, this device features the ETL (ET-type) trim and ships less cylinder, giving you the flexibility to pair it with your preferred mortise cylinder keying. Its surface-mounted top and bottom rods deliver reliable two-point latching, making it a dependable choice for high-traffic exits where security and durability matter.

Features

• Storeroom function keeps the outside lever locked while permitting free egress at all times.
• Surface-mounted vertical rod design provides secure top and bottom latching.
• Sized for wide doors between 43 and 48 inches with an 84-inch door height.
• Supplied less cylinder, allowing integration with your existing keying system.
• G (ET) lever trim offers a comfortable, ADA-compliant grip.
• Grade 1 construction built to withstand heavy daily use in commercial settings.

Functional Details

The storeroom (06) function secures the opening from the outside at all times. Entry requires a key to momentarily retract the latch, after which the lever relocks automatically, while those inside can always exit freely by pressing the push rail.

• Latchbolt is retracted by lever or key.
• Outside lever is always locked.
• Key retracts latchbolt and unlocks outside lever for momentary access.
• Free egress at all times by depressing the push rail.

Included Components

The device includes the surface vertical rod exit chassis, top and bottom latch assemblies with vertical rods, and the ET-style G lever trim. A mortise cylinder is not included and must be ordered separately.
