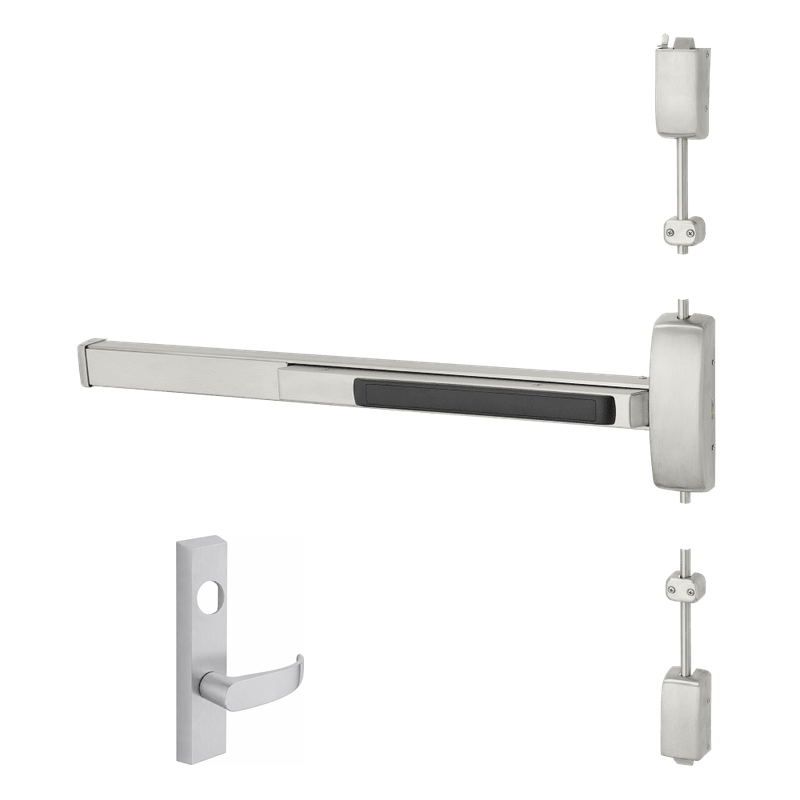

Sargent LC-8706-G-ETP-84 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Width, 84" Ht Door, Less Cylinder
The Sargent LC-8706-G-ETP-84 is a heavy-duty surface vertical rod exit device engineered for wide, tall openings measuring 43 to 48 inches in width and up to 84 inches in height. Built for storeroom function, this Grade 1 device keeps the door securely latched at all times while allowing free egress from the inside. The ETP trim with the G lever offers a clean, durable grip for everyday commercial traffic, and the "less cylinder" configuration lets you specify your preferred cylinder for keying consistency. Ideal for schools, hospitals, and commercial buildings that demand dependable life-safety performance paired with controlled access.
Features
- Surface-mounted vertical rod design provides secure top and bottom latching for added door security.
- Storeroom function keeps the outside lever locked at all times while permitting free egress.
- Sized for oversized doors from 43 to 48 inches wide and up to 84 inches tall.
- ETP escutcheon trim with the G lever delivers a comfortable, durable operating experience.
- Supplied less cylinder so you can match the device to your existing keying system.
- Grade 1 construction built for high-traffic commercial environments.
Functional Details
The storeroom function (06) ensures that the outside lever is always fixed, requiring a key to retract the latch for entry, while the inside push rail always allows immediate free exit for code-compliant egress.
- Outside lever is always locked.
- Key retracts latch for entry.
- Latch is automatically deadlocking.
- Free egress at all times from the inside.
Arm Type Details
As a surface vertical rod device, the 8706 uses top and bottom rods that run along the surface of the door to engage strikes at the head frame and threshold, securing the door at two points for improved resistance and alignment on wide openings.
Included Components
The device ships with the exit chassis, surface-mounted top and bottom vertical rods, top and bottom latches with strikes, and the ETP escutcheon trim fitted with the G lever. A cylinder is not included and must be ordered separately.
Product Specifications
| Manufacturer | Sargent |
| SKU | LC-8706-G-ETP-84 |
| Device Type | Surface Vertical Rod Exit Device |
| Function | Storeroom (06) |
| Trim | ETP Escutcheon with G Lever |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Less Cylinder |
| Origin | United States |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed Panic Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| Limited Warranty | Manufacturer Limited Warranty |
Technical Specifications
| Door Width Range | 43" to 48" |
| Door Height | Up to 84" |
| Device Series | 8700 Series |
| Latching Points | Top and Bottom Vertical Rods |
| Mounting | Surface Mounted |
| Top Latch Bolt Throw | 3/4" |
| Bottom Latch Bolt Throw | 1/2" |
| Door Type | Wood or Metal Doors |
| Handing | Non-Handed |
| Fire Rating | Available for Rated Openings (per model) |
