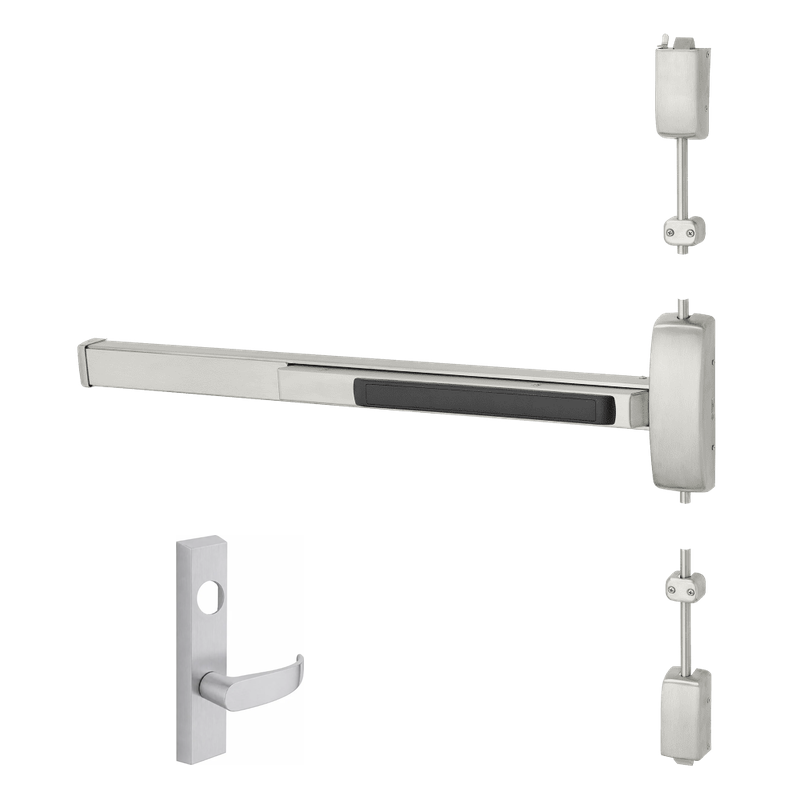

Sargent LC-8706-G-ETP-96 Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 96" Ht Door, Less Cylinder

The Sargent LC-8706-G-ETP-96 is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Configured for storeroom function, it keeps the exterior trim locked at all times while allowing free egress from the inside at any moment. Sized for doors measuring 43" to 48" wide and up to 96" in height, this device suits taller openings that standard exit hardware cannot accommodate. The ETP (E) lever trim offers a durable, ergonomic grip, and the "LC" prefix indicates it ships less cylinder, giving you the flexibility to pair it with your preferred keying system. Built to Sargent's Grade 1 standard, it delivers long-term reliability in high-traffic environments.

Features

• Surface-mounted vertical rod design for secure top and bottom latching.
• Storeroom function keeps the outside trim locked while permitting free egress at all times.
• Sized for doors 43" to 48" wide and up to 96" in height.
• Supplied less cylinder (LC) for compatibility with your existing keying program.
• ETP (E) lever trim provides a comfortable, durable handle for everyday use.
• Grade 1 construction built for heavy, high-cycle commercial applications.

Functional Details

The storeroom function (06) ensures the outside lever is always fixed and rigid. Access from the exterior is only possible with a key, while the inside push rail retracts the vertical rods for instant, unobstructed egress.

• Outside trim is always locked.
• Key retracts latch for entry.
• Free egress at all times from the inside.

Arm Type Details

This device uses a top and bottom vertical rod configuration mounted on the surface of the door. Depressing the push pad simultaneously retracts both rods from the top and bottom strikes, releasing the door for egress and re-latching when the door closes.

Included Components

The device ships with the surface vertical rod exit chassis, ETP lever trim, top and bottom rods, and mounting hardware. A cylinder is not included and must be ordered separately.
