Sargent LC-8706-J-ETB-84 Surface Vertical Rod Exit Device, Storeroom, For 37-42" Wd, 84" Ht Door, Less Cylinder

The Sargent LC-8706-J-ETB-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial and institutional openings. Configured for storeroom function, it provides secure, always-locked trim that requires a key to retract the latch while allowing free egress through the push rail. Built to accommodate doors measuring 37" to 42" wide and up to 84" in height, this device pairs with the ETB (Etowah) lever trim and the J-style escutcheon. Shipped less cylinder, it offers installers flexibility to specify the preferred keying system. Its rugged construction and Grade 1 performance make it ideal for schools, hospitals, and high-traffic entryways.

Features

• Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door for added security.
• Storeroom function keeps the outside trim locked at all times, with free egress always available from the inside.
• Sized for wide doors from 37" to 42" and tall openings up to 84" in height.
• Supplied less cylinder, enabling custom keying to match an existing facility system.
• ETB Etowah lever trim offers a durable, comfortable grip for everyday use.
• Grade 1 rated construction stands up to heavy commercial and institutional traffic.

Functional Details

The storeroom (J) function ensures the latch is retracted only by a key from the outside, while the lever on the exterior remains fixed. The door automatically relocks when closed, maintaining continuous security without requiring the latch to be re-engaged manually.

• Outside lever is always fixed (rigid).
• Latchbolt retracted by key from outside.
• Key removable only in the locked position.
• Free egress at all times by operating the push bar.

Included Components

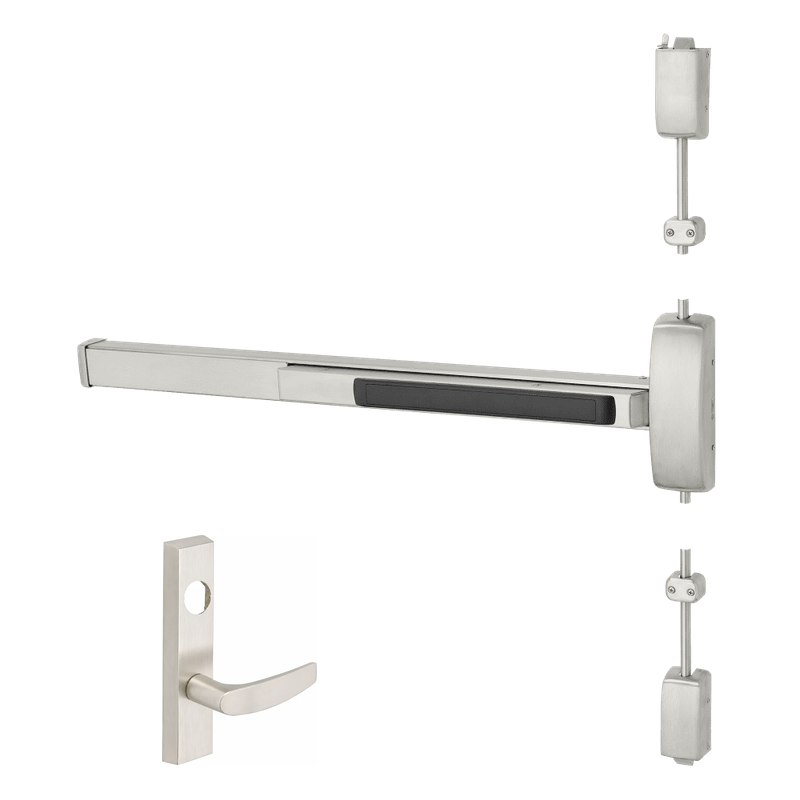

This device includes the surface vertical rod exit mechanism, top and bottom latch assemblies, vertical rods, and the ETB lever trim with J escutcheon. A mortise cylinder is not included and must be ordered separately.
