Sargent LC-8706-J-ETJ-96 Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-J-ETJ-96 is a surface vertical rod exit device engineered for demanding commercial openings up to 96 inches in height and door widths from 37 to 42 inches. Built around the proven 8700 series platform, it provides storeroom function with the J-style escutcheon trim and ETJ lever, delivering reliable, code-compliant egress on heavy-use doors. Supplied less cylinder, it accepts a mortise cylinder of your choice for keyed access, while the surface-mounted top and bottom rods secure the opening at two points for added stability. Ideal for schools, hospitals, and institutional facilities requiring durable, long-lasting panic hardware.

Features

• Surface-mounted vertical rod design latches at the top and bottom of the door for secure, two-point locking.
• Storeroom (06) function keeps the outside lever locked at all times, with free egress from the inside at any moment.
• Sized for tall openings up to 96 inches in height and door widths of 37 to 42 inches.
• Furnished less cylinder, allowing you to specify your preferred mortise cylinder and keyway.
• Includes the J escutcheon trim with the ETJ lever design for a clean, durable appearance.
• Heavy-duty construction suited for high-traffic commercial and institutional environments.

Functional Details

The storeroom function provides controlled access while maintaining unrestricted egress. The outside lever remains locked and requires a key to retract the latch, while depressing the push bar from inside always allows immediate exit.

• Outside lever is always locked.
• Key retracts latch for entry.
• Latch is retracted by push bar from inside at all times.
• Free egress at all times.

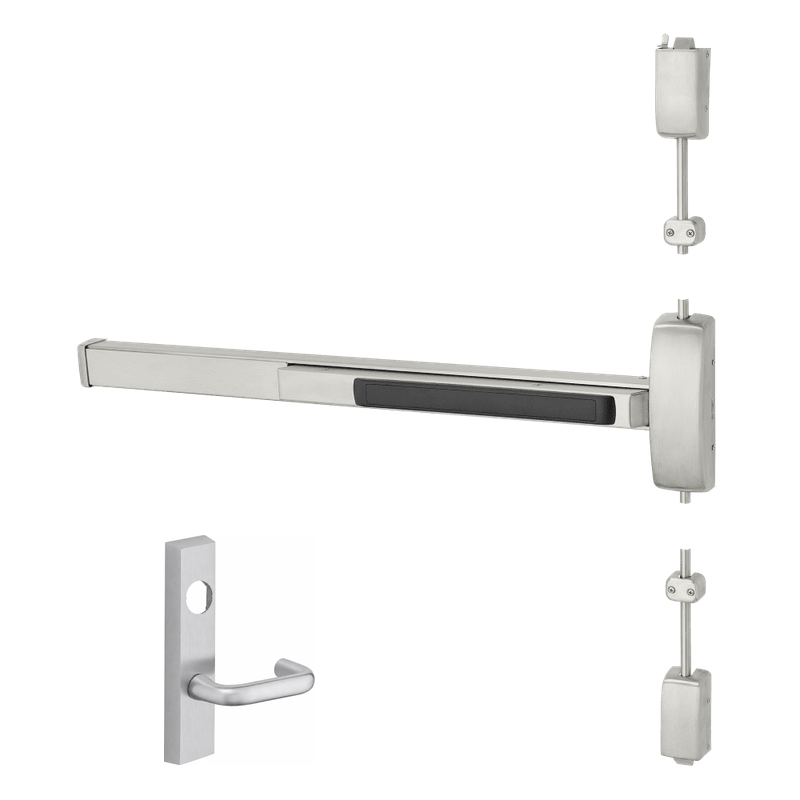

Included Components

This device ships with the exit device chassis, top and bottom surface vertical rods, latches, strikes, the J escutcheon trim, and the ETJ lever. A mortise cylinder is required and ordered separately.
