Sargent LC-8706-J-ETL-84 Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 84" Ht Door, Less Cylinder

The Sargent LC-8706-J-ETL-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial and institutional openings. Configured for storeroom function with the J-style ETL lever trim, this device provides secure, keyed entry while allowing free egress at all times. It is sized for doors 37 to 42 inches wide and 84 inches tall, making it suitable for taller openings found in schools, hospitals, and public buildings. Supplied less cylinder, it accepts the mortise cylinder of your choice for integration with existing keying systems. Built to Grade 1 standards, this exit device delivers reliable performance and long service life in high-traffic environments.

Features

• Surface-mounted vertical rod design for dependable two-point latching at the top and bottom of the door.
• Storeroom function keeps the outside lever locked at all times while the inside push rail always allows free egress.
• J-style ETL lever trim offers a comfortable, ADA-compliant grip for everyday use.
• Sized for doors 37" to 42" wide and up to 84" tall.
• Shipped less cylinder to accommodate your preferred mortise cylinder and keyway.
• Grade 1 construction built for heavy-duty, high-traffic applications.

Functional Details

The storeroom function provides maximum security by keeping the exterior trim locked continuously, requiring a key for outside entry, while the interior push rail permits immediate, unobstructed egress.

• Outside lever is always locked.
• Key retracts latch for entry.
• Free egress at all times from the inside.

Arm Type Details

This device uses a surface-mounted vertical rod configuration, with rods running vertically along the face of the door to engage latch points at the top and bottom frame, providing secure two-point latching without a mullion or floor strike interference.

Included Components

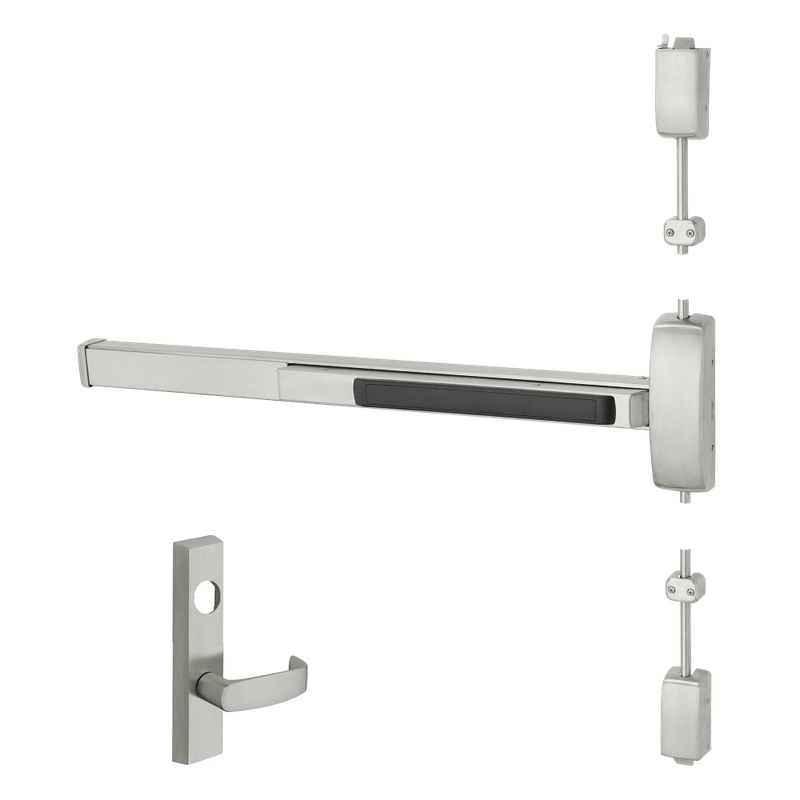

The device includes the exit chassis, top and bottom vertical rods, latch mechanisms, strikes, and the J-style ETL lever trim. A mortise cylinder is required but not included.
