Sargent LC-8706-J-ETP-96 Surface Vertical Rod Exit Device, Storeroom, For 37-42" Width, 96" Ht Door, Less Cylinder

The Sargent LC-8706-J-ETP-96 is a surface-mounted vertical rod exit device engineered for demanding commercial openings. Configured for storeroom function, it allows free egress from the inside at all times while keeping the exterior lever locked and dogging disabled, making it ideal for secure entries that still require code-compliant exit. Built for wider openings measuring 37" to 42" and tall 96" doors, this unit ships less cylinder so you can match your facility's existing keying system. The ETP escutcheon trim with J lever delivers a clean, durable finish suited to schools, offices, and institutional buildings where reliable performance is essential.

Features

• Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door for added security.
• Storeroom function keeps the outside lever locked at all times while allowing free egress from the inside.
• Sized for doors 37" to 42" wide and up to 96" tall to accommodate oversized openings.
• Less cylinder configuration lets you integrate the device into your facility's existing key system.
• ETP escutcheon trim paired with the J lever offers a sturdy, professional appearance.
• Heavy-duty construction built to withstand high-traffic commercial use.

Functional Details

The storeroom function (06) provides controlled access with constant security. The outside lever remains locked and requires a key to retract the latch, while the inside push bar allows unrestricted exit.

• Outside lever is always rigid/locked.
• Key retracts latch for entry.
• Latch is automatically deadlocking.
• Free egress at all times from the inside.

Arm Type Details

This device uses the ETP escutcheon trim with the J lever design. The escutcheon-style plate mounts the lever securely to the door, providing a robust grip surface and resisting abuse in high-use environments.

Included Components

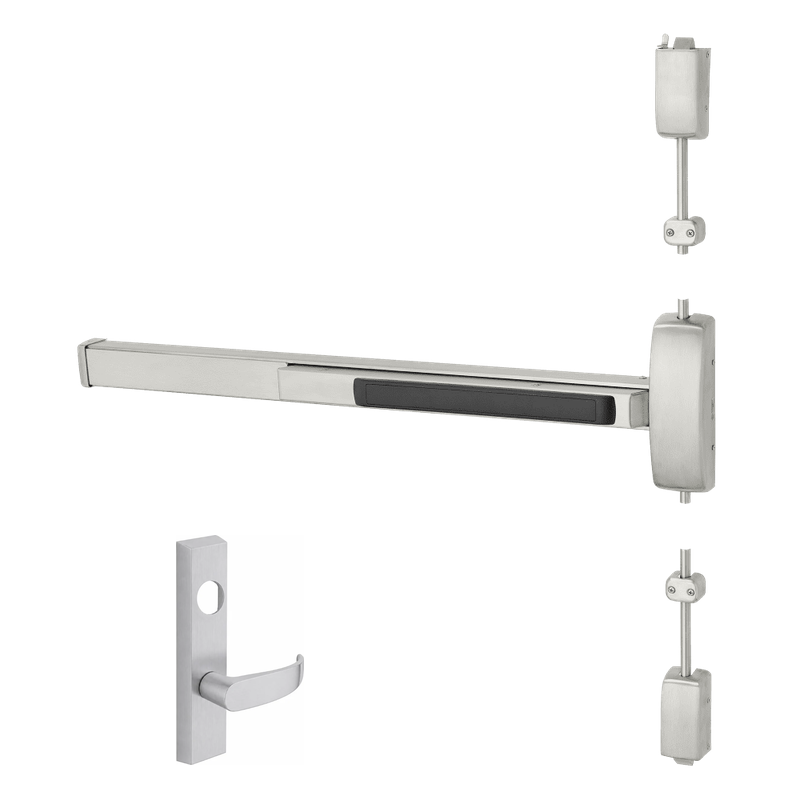

The package includes the 8700 series surface vertical rod exit device chassis, top and bottom latch rods, ETP escutcheon trim with J lever, and mounting hardware. A cylinder is not included and must be ordered separately.
