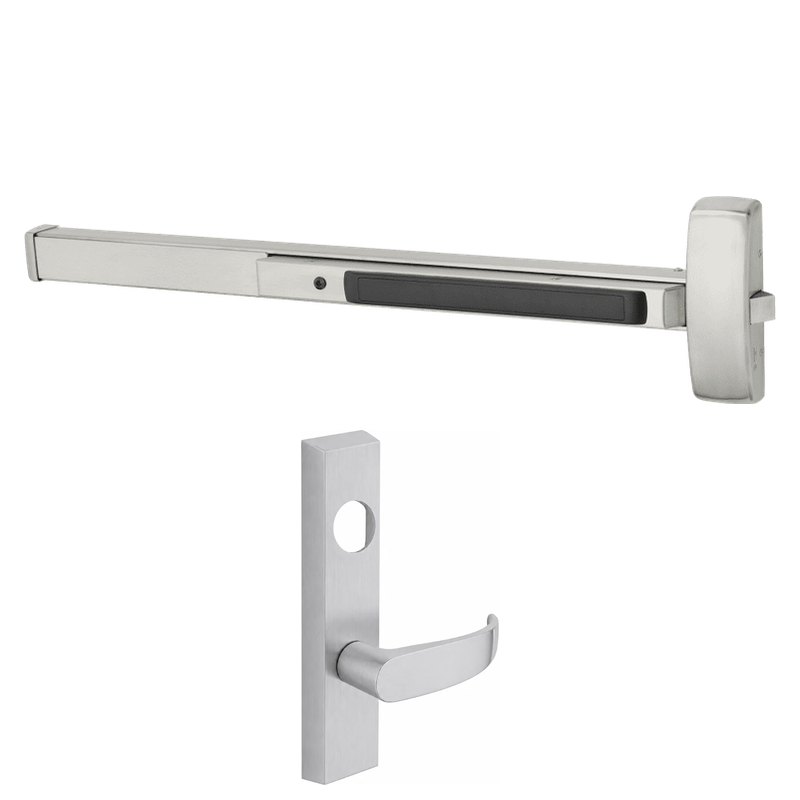

Sargent LC-8806-F-ETP Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 33-36" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8806-F-ETP is a Grade 1 rim exit device built for storeroom applications in high-traffic commercial openings. Designed for door widths of 33 to 36 inches, it pairs reliable panic exit functionality with an ETP escutcheon trim that controls outside access. In the storeroom configuration, a key unlocks the outside trim for entry, and the trim automatically relocks once the key is removed—keeping the opening secure at all times. Shipped less cylinder for flexible keying integration, this fire-rated device includes hex key dogging and the durable construction Sargent is known for, making it a dependable choice for schools, offices, and institutional facilities.

Features

• Grade 1 rim exit device suited for demanding commercial and institutional use.
• Storeroom function: key unlocks the outside trim and the trim relocks when the key is removed.
• Sized for 33" to 36" door widths.
• Fire-rated (F) construction for use on labeled fire door assemblies.
• Supplied less cylinder to accommodate existing or custom keying systems.
• Hex key dogging holds the pushbar in the retracted position for push/pull operation.
• ETP escutcheon trim provides a durable, finished exterior pull.

Functional Details

The storeroom (06) function keeps the latch secure from the outside unless activated by a key. Turning the key retracts the latch for entry; when the key is withdrawn, the trim relocks automatically. Free egress is always available from the inside by pressing the pushbar.

• Key unlocks/locks outside trim.
• Outside trim is normally locked.
• Latchbolt retracted by key outside or by pushpad inside.
• Trim relocks when key is removed.

Arm Type Details

The ETP trim is an escutcheon-style pull mounted to the outside of the door. It works with the rim exit device to provide controlled key access while maintaining a clean, robust appearance that stands up to continuous use.
