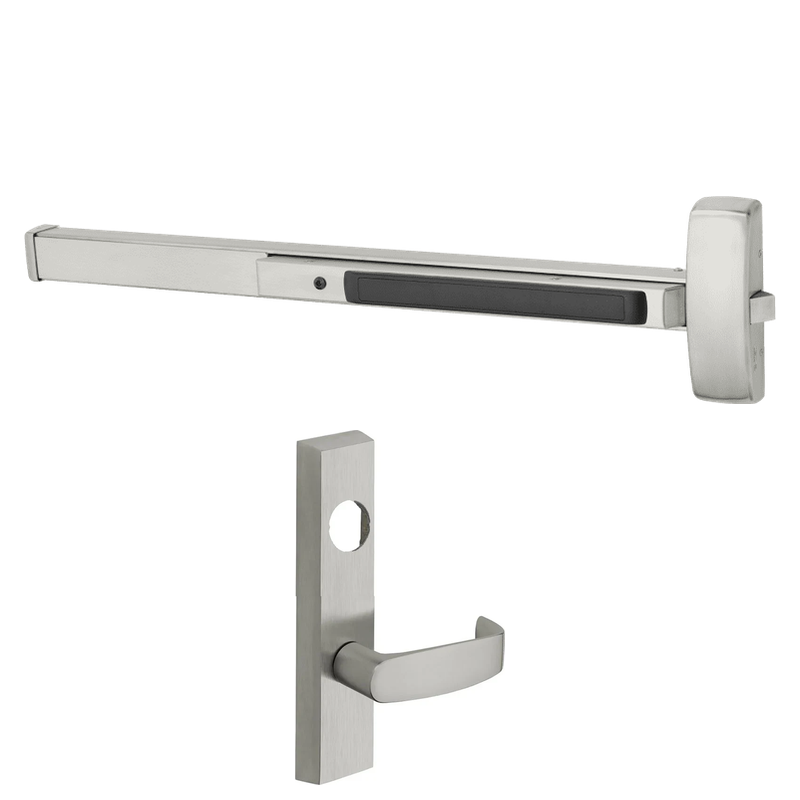

Sargent LC-8806-G-ETL Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 43-48" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8806-G-ETL is a Grade 1 rim exit device engineered for demanding commercial openings that require dependable panic egress paired with controlled entry. Configured for the storeroom function, it keeps the outside trim locked at all times while allowing free exit, making it a smart choice for stockrooms, utility spaces, and secure perimeter doors. This unit fits wider openings ranging from 43 to 48 inches and ships less cylinder, giving you the flexibility to pair it with your facility's preferred keying system. The ETL (G) design and hex key dogging deliver reliable, code-compliant performance across high-traffic installations where security and durability matter most.

Features

• Grade 1 rim exit device built for heavy-duty commercial use and frequent cycling.
• Storeroom function keeps outside trim locked while allowing free egress at all times.
• Key unlocks the outside trim, and the trim automatically relocks when the key is removed.
• Sized for door widths between 43 and 48 inches to cover wider openings.
• Supplied less cylinder so you can integrate it with your existing keying program.
• Hex key dogging allows the latch to be held retracted for push/pull operation during peak hours.

Functional Details

The storeroom function provides secure entry control while maintaining unobstructed egress. Depressing the push bar always retracts the latch to allow immediate exit, and the outside trim stays locked until unlocked by a key.

• Key unlocks trim.
• Trim relocks when key is removed.
• Latch bolt by lever or thumbpiece when retracted by key.
• Exit by operating device from inside at all times.

Arm Type Details

The G trim designation refers to the ET lever trim style, which provides an ergonomic, ADA-compliant lever pull on the exterior for entry when the cylinder is operated. The lever controls the latch bolt when unlocked, offering comfortable and intuitive access.

Included Components

This device includes the rim exit chassis, ET (G) outside lever trim, and hex key dogging hardware. A cylinder is not included and must be ordered separately to match your keying requirements.
