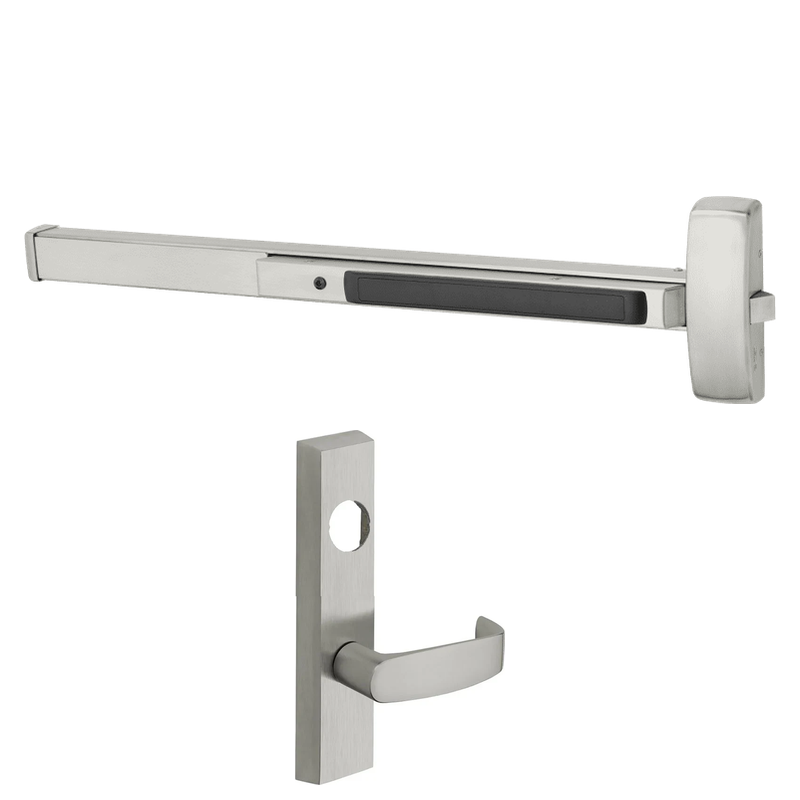

Sargent LC-8806-J-ETL Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8806-J-ETL is a heavy-duty rim exit device engineered for high-traffic commercial openings that demand reliable storeroom-function access control. Built for doors ranging from 37 to 42 inches wide, it pairs a durable push-rail mechanism with the ET-series J lever trim for comfortable everyday use. In storeroom mode, a key unlocks the outside trim for entry, and the trim automatically relocks once the key is removed, keeping the door secure by default. This unit ships less cylinder, giving you flexibility to match your existing keyway, and includes hex key dogging to hold the latch retracted for free passage during peak hours.

Features

• Grade 1 rim exit device suitable for demanding commercial and institutional applications.
• Storeroom function: the key unlocks the outside trim and the trim relocks automatically when the key is withdrawn.
• Sized for door widths of 37 to 42 inches.
• Supplied less cylinder so you can install the mortise cylinder of your choice.
• ET-series J lever trim offers an ergonomic, ADA-compliant grip.
• Hex key dogging retracts the latch for push/pull operation during high-traffic periods.

Functional Details

The storeroom function keeps the outside trim locked at all times until a key is used. Turning the key unlocks the trim for entry, and when the key is removed the trim returns to its locked state, so the opening never stays unsecured by accident. Exit is always free from the inside via the push rail.

• Outside trim is locked at all times.
• Key unlocks trim; trim relocks when key is removed.
• Latchbolt retracted by lever or by key.
• Free egress at all times by pushing the rail.

Arm Type Details

This device uses the ET-series "J" lever design, a contemporary lever trim that provides a smooth, comfortable pull for entry when unlocked and meets accessibility requirements for commercial door hardware.

Included Components

The package includes the 8806 rim exit device chassis, the ET-J lever trim, and hex key dogging hardware. A mortise cylinder is not included and must be ordered separately.
