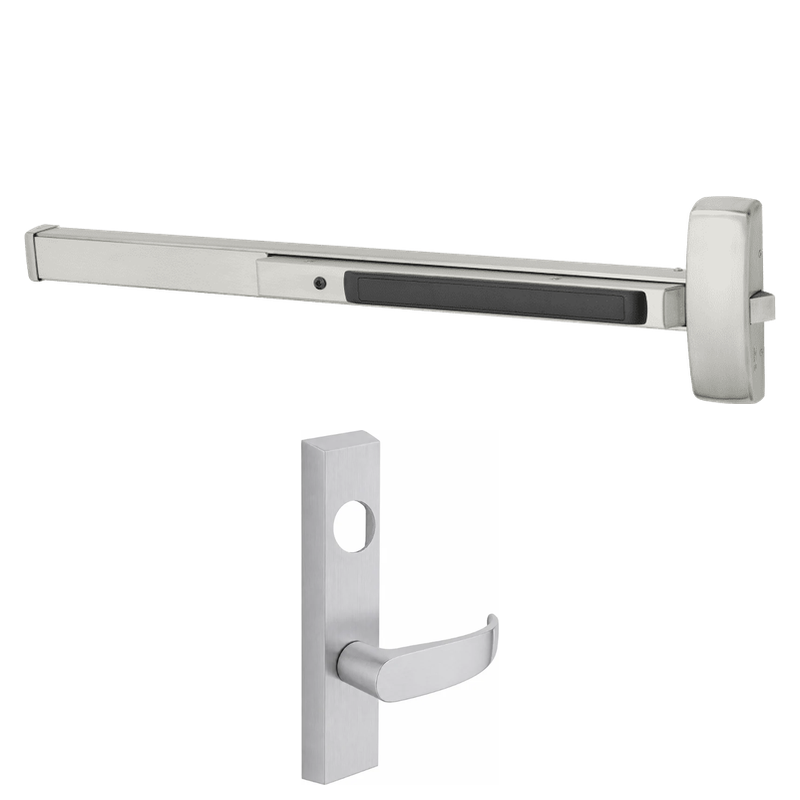

Sargent LC-8806-J-ETP Rim Exit Device, Storeroom Function, Key Unlocks Trim, Trim Relocks When Key Removed, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8806-J-ETP is a heavy-duty rim exit device built for storeroom applications on commercial and institutional openings. Designed for doors ranging from 37 to 42 inches wide, it pairs the durable 8800 Series chassis with the J-style ETP escutcheon trim to deliver reliable, code-compliant egress. In storeroom mode, a key momentarily retracts the latch to unlock the outside trim, which relocks automatically once the key is withdrawn—keeping the opening secured at all times. Shipped less cylinder for flexible keying, this device also features hex key dogging to hold the latch retracted when needed for high-traffic periods.

Features

• Rim-mounted exit device engineered for 37" to 42" door widths.
• Storeroom function keeps the outside trim locked at all times unless momentarily unlocked by key.
• Trim automatically relocks when the key is removed for consistent security.
• Supplied less cylinder, allowing you to match your existing keying system.
• Hex key dogging holds the latch retracted for push/pull operation during peak traffic.
• J-style ETP escutcheon trim provides a durable, finished exterior pull.
• Heavy-duty 8800 Series construction suited to high-use commercial environments.

Functional Details

The storeroom (06) function provides a secure opening where the outside trim remains locked continuously. A key momentarily retracts the latchbolt to allow entry; the latch returns to its locked position, and the trim relocks as soon as the key is removed. Free egress is always available from the inside by pushing the touchbar.

• Key retracts latch, outside trim remains locked.
• Latchbolt is retracted by key or by operation of the inside push bar.
• Outside trim is rigid.

Included Components

This device ships as a complete rim exit device with the J-style ETP escutcheon trim and hex key dogging. The mortise cylinder is not included and must be ordered separately to complete the keyed function.
