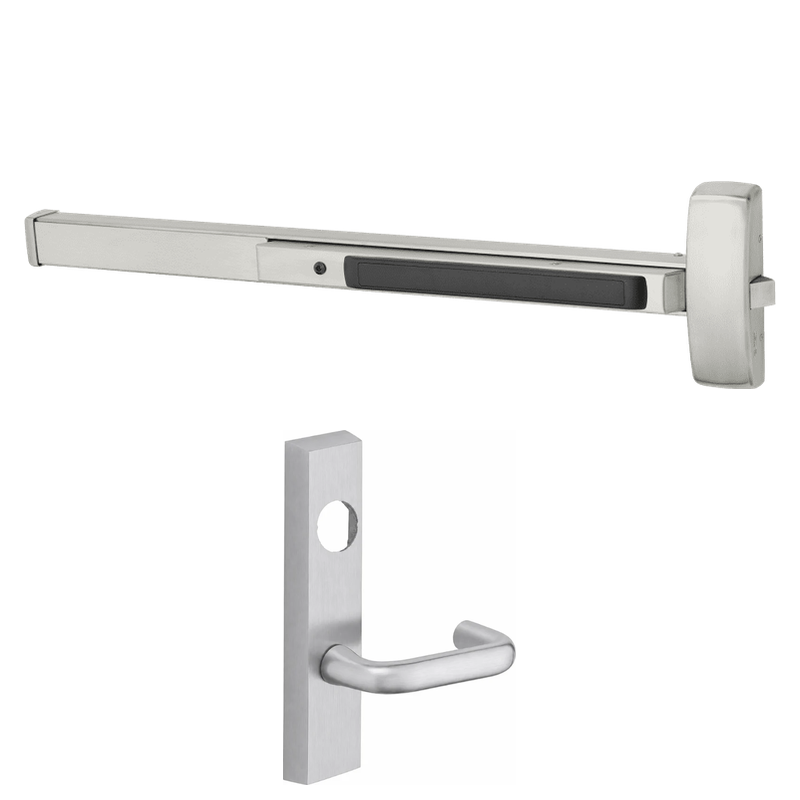

Sargent LC-8875-F-ETJ-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-F-ETJ-12V is a heavy-duty electrified rim exit device built for demanding commercial openings that require both reliable egress and controlled access. Designed for doors measuring 33 to 36 inches wide, it features a fail safe electrified lever trim that unlocks on power loss, ensuring occupants can exit and enter freely during emergencies or power interruptions. The ETJ lever trim allows key-controlled latch retraction, while hex key dogging keeps the latch held back for high-traffic periods. Shipped less cylinder for cylinder flexibility, this 12V device from Sargent delivers dependable security and life-safety performance in schools, offices, and institutional environments.

Features

• Electrified rim exit device engineered for single doors 33 to 36 inches wide.
• Fail safe configuration unlocks the lever trim when power is removed.
• ETJ lever trim design with key retracts latch functionality for secure access control.
• Hex key dogging holds the latch retracted to allow push/pull operation.
• Supplied less cylinder, allowing you to specify your preferred cylinder.
• Operates on 12V DC for integration with access control systems.
• Grade 1 construction for long-term durability in high-use applications.

Functional Details

The fail safe function means the electrified trim unlocks automatically when power is interrupted, permitting entry from the outside during power failures. When powered, the outside lever is locked and access is controlled electronically, while free egress is always available from the inside through the push bar.

• Fail Safe (power off unlocks lever)
• Key retracts latch for mechanical override
• Hex key dogging for mechanical hold-back

Arm Type Details

The ETJ designation refers to the electrified J lever trim, which combines access-controlled electrified operation with a key cylinder that retracts the latch. The lever provides ergonomic operation and ADA-compliant access when unlocked, while the integrated key function supplies a mechanical means to retract the latch.

Included Components

Device ships with the rim exit chassis, ETJ electrified lever trim, and hex key dogging hardware. A mortise cylinder is required but not included, allowing selection of a compatible cylinder to match the facility keying system.
