Sargent LC-8875-F-ETJ-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-F-ETJ-24V is a heavy-duty electrified rim exit device built for commercial openings that demand reliable access control and dependable free egress. Designed for doors ranging from 33 to 36 inches in width, this Grade 1 device features a fail safe electrified function, meaning the ET-J lever unlocks when power is removed. It operates on 24V DC and includes the J-style lever trim, hex key dogging for holding the latch retracted during peak traffic, and a key-retracts-latch cylinder operation. Supplied less cylinder, it accepts a standard rim cylinder for flexible keying to match your existing system.

Features

• Electrified fail safe function unlocks the lever when power is removed, allowing immediate egress and controlled entry.
• Rim exit device design for single doors between 33 and 36 inches wide.
• ET-J lever trim provides a durable, ergonomic outside operating handle.
• Operates on 24V DC for integration with access control systems.
• Key retracts latch, allowing the exterior cylinder to momentarily release the latchbolt.
• Hex key dogging holds the pushbar depressed for push-pull operation during high-traffic periods.
• Supplied less cylinder, accepting a standard rim cylinder for custom keying.

Functional Details

The fail safe (F) configuration keeps the outside lever locked while energized and automatically unlocks it upon loss of power, ensuring the opening becomes accessible during an outage or alarm condition. The ETJ electrified trim controls the exterior lever while the pushbar always permits free egress from the inside.

• Fail Safe: Power off unlocks the lever.
• Key retracts latch for momentary mechanical entry.
• 24V DC operation.

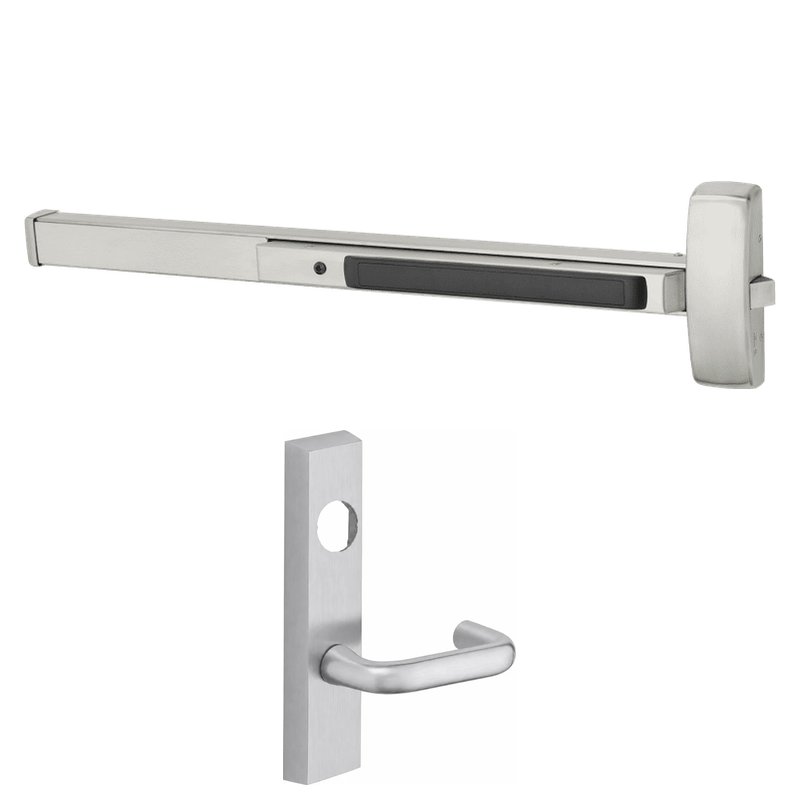

Included Components

This device ships with the 8800 series rim chassis, the ET-J electrified lever trim, mounting hardware, and strike. A rim cylinder is required but not included, allowing you to key the device to your facility.
