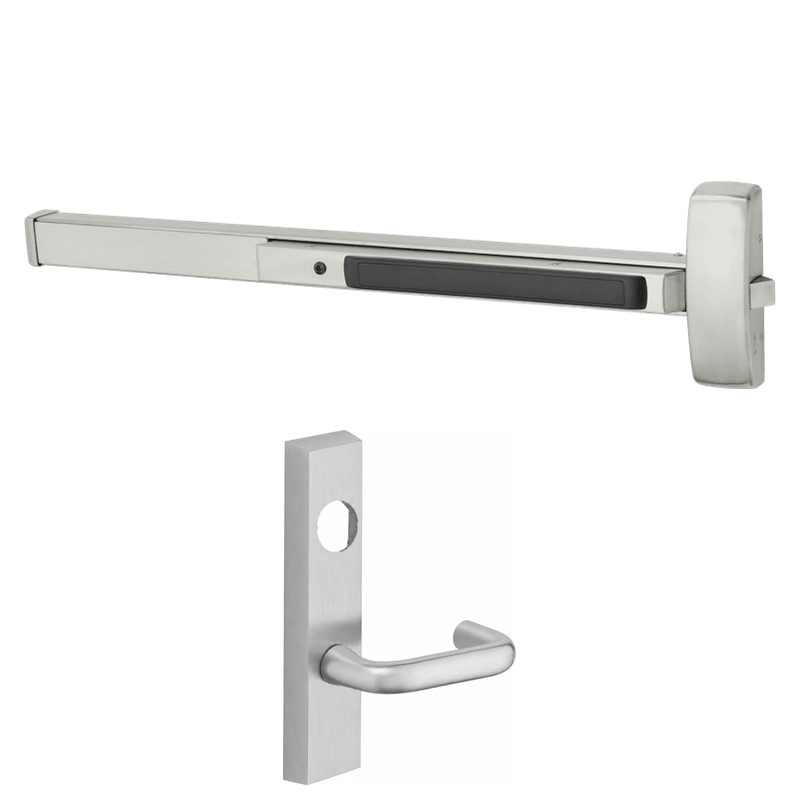

Sargent LC-8875-G-ETJ-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-G-ETJ-12V is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that demand reliable access control. Configured for fail-safe operation, it unlocks the outside ETJ lever trim automatically when power is removed, making it ideal for egress and emergency-release applications. Its key-retracts-latch function lets authorized users pull the latch using a cylinder, while hex key dogging holds the pushbar depressed for push/pull convenience during busy periods. Sized for 43 to 48 inch wide doors and supplied less cylinder, this 12V device pairs Sargent's proven 8800 Series durability with electrified versatility for demanding institutional and commercial environments.

Features

• Electrified rim exit device built on Sargent's durable 8800 Series platform.
• Fail-safe operation unlocks the outside lever when power is removed.
• Key-retracts-latch function allows the cylinder to withdraw the latch.
• ETJ lever trim provides a comfortable, ADA-compliant grip.
• Sized to fit doors measuring 43 to 48 inches wide.
• Hex key dogging holds the latch retracted for push/pull use.
• Supplied less cylinder for flexible keying integration.
• Operates on 12V DC for compatibility with common access control systems.

Functional Details

The 8875 function combines key-retraction of the latchbolt with an electrified fail-safe lever. When energized, the outside lever is locked; removing power unlocks the lever to allow free access. A cylinder (ordered separately) can also retract the latch mechanically for immediate entry.

• Key retracts latch and electrically unlocks/locks outside trim.
• Fail safe: power off unlocks the outside lever.

Arm Type Details

The ETJ trim is a lever-style escutcheon trim with the J lever design, providing secure outside access control. When the device is energized or locked, the lever is rigid; the latch can still be retracted by the inside pushbar for free egress at all times.

Included Components

This device includes the rim exit chassis with electrified fail-safe lever trim (ETJ-J lever), strike, and mounting hardware. A mortise cylinder is required for the key-retracts-latch function and must be ordered separately.
