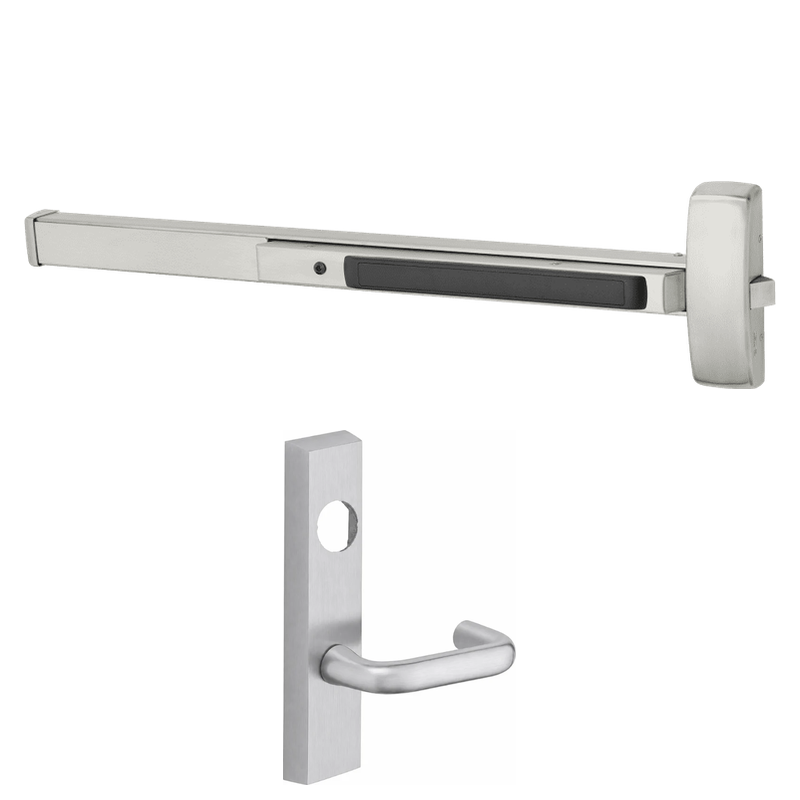

Sargent LC-8875-G-ETJ-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-G-ETJ-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require controlled access and reliable egress. Designed for doors measuring 43 to 48 inches wide, this Grade 1 device operates on 24V DC and features a fail safe configuration, meaning the outside ETJ lever unlocks when power is removed to permit entry during emergencies. The key retracts latch function allows authorized users to pull the latch via an exterior cylinder, while the hex key dogging holds the pushbar depressed for push-pull operation during peak hours. It ships less cylinder for flexible keying.

Features

• Electrified rim exit device rated for Grade 1 commercial and institutional use.
• Fail safe operation unlocks the outside lever when power is cut for secure egress.
• 24V DC power input for compatibility with common access control systems.
• Key retracts latch function allows latch withdrawal using an exterior cylinder.
• Sized for single doors 43 to 48 inches wide.
• Hex key dogging holds the pushbar down for convenient push-pull operation.
• Supplied less cylinder to accommodate your preferred keying system.
• ETJ trim provides a durable lever handle for controlled outside access.

Functional Details

This device combines fail safe electrified lever control with a mechanical key-retract function. When energized, the outside lever remains locked; removing power releases the lever to allow entry. The exterior cylinder can retract the latch independently for mechanical access, and hex key dogging keeps the latch retracted for free passage.

• Fail Safe: power off unlocks the outside lever.
• Key retracts latch for mechanical access control.
• Hex key dogging for push-pull function.

Arm Type Details

The ETJ designation specifies the Sargent lever trim style used with this exit device. The J lever offers a contoured grip and operates the outside lever for controlled entry when the device is powered and unlocked.

Included Components

The package includes the electrified rim exit device chassis, ETJ exterior lever trim, and mounting hardware. A mortise cylinder is not included and must be ordered separately.
