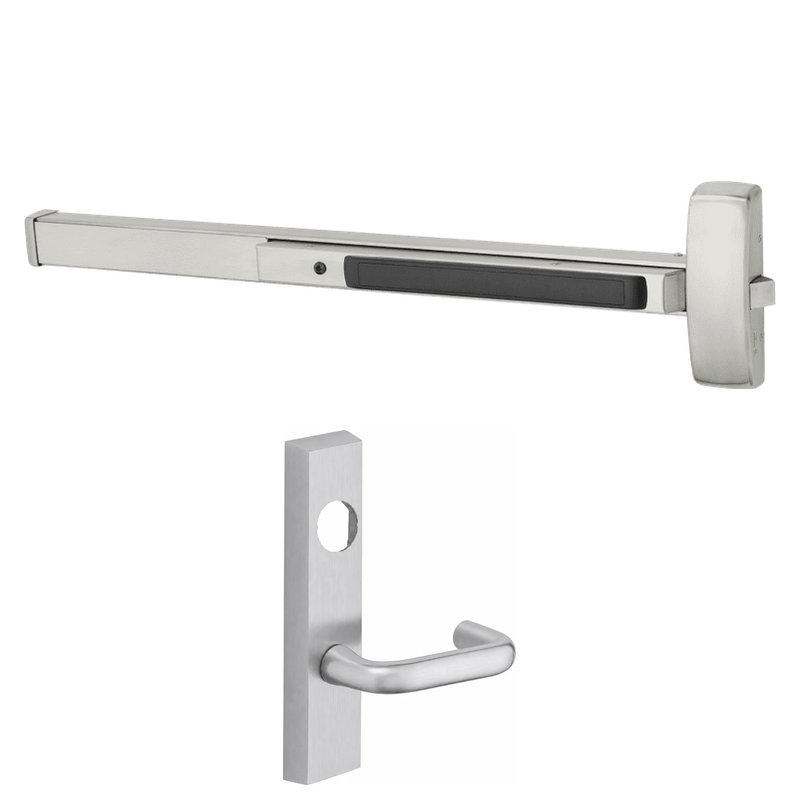

Sargent LC-8875-J-ETJ-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-J-ETJ-12V is an electrified rim exit device built for high-traffic commercial openings where secure access control and reliable egress are both essential. Designed for doors measuring 37 to 42 inches wide, this fail-safe unit unlocks the outside lever when power is removed, ensuring occupants can exit during a power loss. The J escutcheon trim paired with the ETJ lever offers a durable, comfortable grip, while the key-retracts-latch function allows authorized entry from the outside. Supplied less cylinder for field flexibility and equipped with hex key dogging, it combines code-compliant panic hardware performance with electrified convenience in a rugged, long-lasting package.

Features

• Electrified rim exit device engineered for commercial grade security and life-safety egress.
• Fail-safe operation unlocks the outside lever when power is removed from the device.
• Key-retracts-latch function allows authorized outside entry using the key.
• Sized for doors 37 to 42 inches in width.
• Supplied less cylinder, allowing you to match your existing keying system.
• Hex key dogging holds the latch retracted for push/pull operation during peak traffic.
• 12V operating voltage for integration with access control systems.
• J escutcheon trim with ETJ lever design for ergonomic, durable use.

Functional Details

As a fail-safe electrified exit device, the outside lever is locked when energized and automatically unlocks when power is removed or interrupted, allowing free passage in the event of a power failure. The key-retracts-latch function lets an authorized user retract the latch with a key for momentary entry, while the push bar always permits free egress from the inside.

• Fail safe: power off unlocks the outside lever.
• Key retracts latch for authorized entry.
• Hex key dogging for mechanical hold-back of the latch.

Included Components

The device ships with the rim exit chassis, ETJ lever trim with J escutcheon, and the required mounting hardware. A cylinder is not included and must be ordered separately to complete the key-operated functions.
