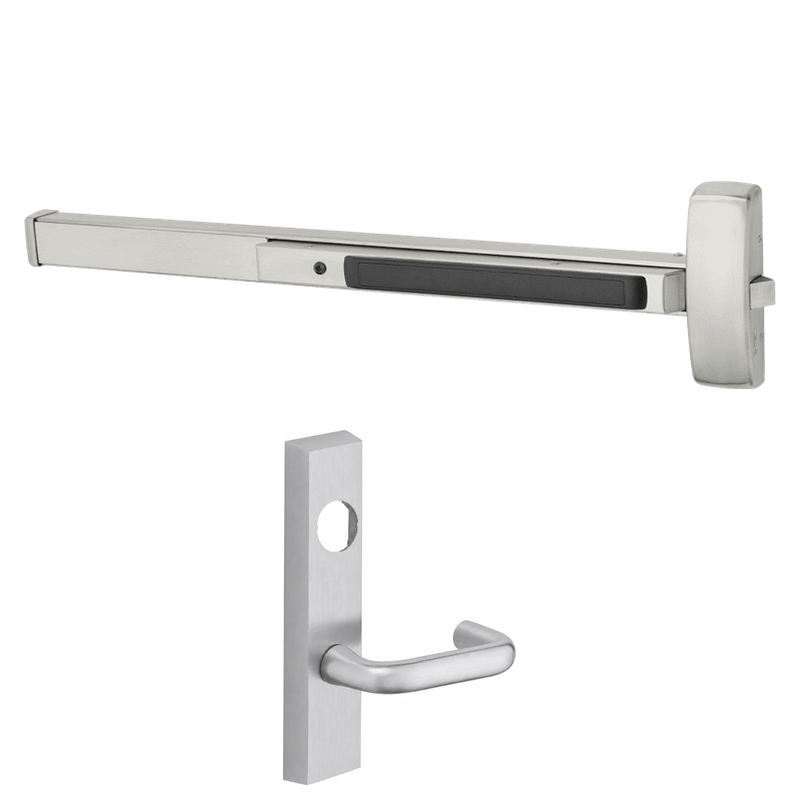

Sargent LC-8875-J-ETJ-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8875-J-ETJ-24V is a heavy-duty electrified rim exit device built for demanding commercial and institutional openings on doors measuring 37 to 42 inches wide. This Grade 1 device pairs reliable panic exit performance with electrified fail-safe operation, so a loss of power automatically unlocks the outside lever for free access. Configured with the J (ETJ) lever trim and 24V operation, it supports key-retracts-latch functionality and ships less cylinder to accommodate your preferred keying system. Hex key dogging allows the latch to be held retracted for push/pull operation during high-traffic periods, making it a dependable choice for schools, healthcare, and office environments.

Features

• Electrified rim exit device rated for 37 to 42 inch wide doors.
• Fail-safe design unlocks the outside lever when power is removed.
• Key-retracts-latch function provides controlled outside access.
• Operates on 24V for compatibility with access control systems.
• Hex key dogging holds the latch retracted for free passage.
• Supplied less cylinder for flexible keying options.
• ETJ lever trim with the J lever design for a modern, ergonomic feel.

Functional Details

This device uses a fail-safe electrified configuration, meaning the outside lever is locked when energized and automatically unlocks when power is interrupted. The 24V solenoid controls the outside trim, while free egress through the device is always available from the inside.

• Fail safe: power off unlocks the outside lever.
• Key retracts latch for momentary outside access.
• Hex key dogging mechanism for mechanical latch hold-back.

Arm Type Details

The ETJ designation refers to the electrified J lever trim used on the outside of the door. The J lever provides a smooth, contemporary grip and controls latch retraction when the key is used or the device is energized for access.

Included Components

The device includes the rim exit chassis, ETJ electrified lever trim, and hex key dogging hardware. A cylinder is not included and must be ordered separately to match the facility's keying.
