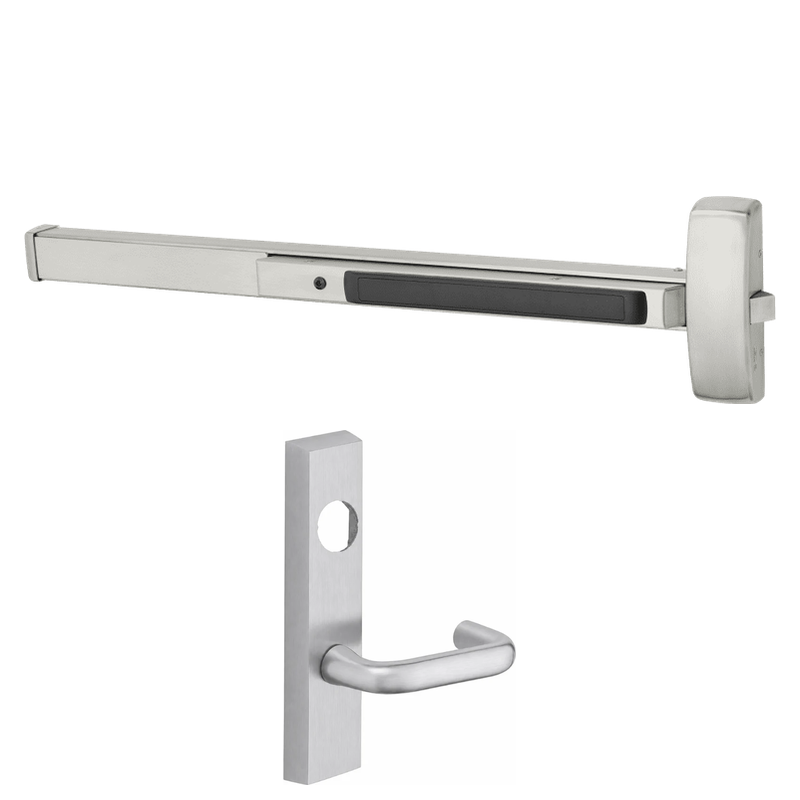

Sargent LC-8876-J-ETJ-24V Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Key Retracts Latch, For 37-42" Width Door, Less Cylinder, Hex Key Dogging

The Sargent LC-8876-J-ETJ-24V is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that require controlled, secure access. Built for door widths between 37 and 42 inches, this 8800 Series device operates on 24V DC and features a fail secure configuration, meaning the lever stays locked when power is removed—ideal for securing sensitive areas during a power loss. It pairs with the ETJ trim and J lever design, retracts the latch via key for authorized entry, and ships less cylinder so you can match your existing keying system. Hex key dogging allows the device to be held in a push/pull state when needed.

Features

• Electrified rim exit device from Sargent's durable 8800 Series line.
• Fail secure operation keeps the lever locked when power is cut off.
• Sized for door widths from 37 to 42 inches.
• Operates on 24V DC for reliable electrified performance.
• Key retracts the latch for controlled entry from the outside.
• ETJ trim with the J lever design for comfortable, code-compliant egress.
• Supplied less cylinder to accommodate your preferred keying.
• Hex key dogging holds the latch retracted for free passage.

Functional Details

In a fail secure configuration, removing power locks the outside lever, ensuring the opening stays secured during a power interruption. Free egress is always maintained from the inside by pressing the touchbar. A key in the outside trim will retract the latch to allow authorized entry.

• Fail Secure: Power off locks lever.
• Key retracts latch.
• Hex key dogging.

Arm Type Details

This unit uses the ETJ escutcheon trim with the J lever style, providing a solid, ergonomic grip for exterior operation while keeping the interior push-bar egress unobstructed.

Included Components

Device ships with the exit device chassis, ETJ-J electrified trim, and mounting hardware. A compatible mortise cylinder is required but not included.
