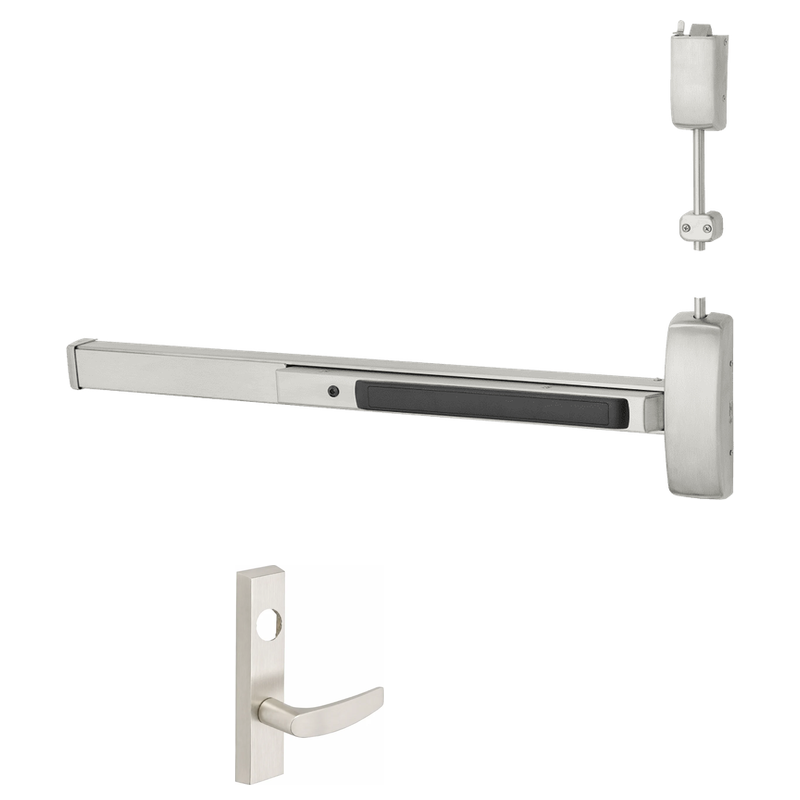

Sargent LC-NB-8706-F-ETB-84 Surface Vertical Rod Exit Device, Storeroom Function, Less Bottom Rod, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, Hex Key Dogging

The Sargent LC-NB-8706-F-ETB-84 is a heavy-duty surface vertical rod exit device built for demanding commercial and institutional openings. Designed for storeroom applications, it features the ETB lever trim that stays locked from the outside until a key retracts the latch, while free egress is always available from the inside. This configuration is set up as less bottom rod (NB) for cleaner floor clearance and easier maintenance, and ships less cylinder (LC) so you can match your existing keying. Sized for doors 33 to 36 inches wide and up to 84 inches tall, it delivers reliable Grade 1 performance with hex key dogging for secure push-pull operation.

Features

• Surface-mounted vertical rod exit device suited for wood or metal doors in high-traffic environments.
• Storeroom function (F) keeps the outside lever locked at all times while allowing free egress.
• Less bottom rod design reduces floor debris issues and simplifies installation.
• Accepts field-supplied cylinder for flexible keying thanks to the less cylinder configuration.
• Hex key dogging holds the latch retracted for push-pull operation during peak traffic.
• ETB lever trim provides durable, ADA-compliant outside operation.
• Fits doors 33–36 inches wide and up to 84 inches in height.

Functional Details

The storeroom function means the latchbolt is locked by the outside trim at all times. A key is required to retract the latchbolt and gain entry, but the latch relocks automatically once released. The inside push rail always allows immediate, free egress regardless of the lock status.

• Outside trim is always locked (rigid lever).
• Latchbolt is retracted by key from outside.
• Free egress at all times from inside.

Arm Type Details

This device uses surface-mounted vertical rods connected to top and bottom latch points. In the less bottom rod configuration, only the top rod and latch engage the frame, reducing the number of floor-level components that can collect dirt or sustain damage.

Included Components

Includes the 8706 surface vertical rod exit device chassis, ETB lever trim, top vertical rod and latch assembly, and hex key dogging hardware. Cylinder and bottom rod are not included with this configuration.
