Sargent LC-NB-8706-F-ETJ-84 Surface Vertical Rod Exit Device, Storeroom Function, Less Bottom Rod, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, Hex Key Dogging

The Sargent LC-NB-8706-F-ETJ-84 is a surface vertical rod exit device engineered for dependable performance on tall commercial openings up to 84 inches in height and door widths of 33 to 36 inches. Configured in the storeroom function with the ETJ lever trim, it keeps the outside lever locked at all times while allowing free egress from the inside. This unit ships less bottom rod (LBR) for cleaner installation and easier maintenance, and less cylinder (LC) so you can supply the keying to match your facility. Hex key dogging lets you hold the latch retracted for push/pull operation during high-traffic periods, making it a practical choice for schools, offices, and institutional buildings.

Features

• Surface-mounted vertical rod design built for doors 33–36 inches wide and up to 84 inches tall.
• Storeroom function (F) keeps the outside lever locked while permitting free exit from the inside at all times.
• Supplied less bottom rod (NB/LBR) to reduce floor-level obstructions and simplify maintenance.
• Less cylinder (LC) configuration lets you integrate your own keying system.
• ETJ lever trim offers a durable, ADA-compliant operating lever.
• Hex key dogging allows the latch to be held retracted for push/pull access.
• Grade 1 construction suited for heavy-use commercial and institutional applications.

Functional Details

The storeroom function holds the outside lever in a continuously locked state. Access from the exterior requires a key, while the inside push bar always provides immediate free egress for life-safety compliance. Hex key dogging can mechanically retract and hold the latch for unimpeded passage when the opening needs to remain unlatched.

• Outside trim is always locked.
• Latchbolt retracted by key from outside.
• Free egress at all times by depressing the push bar.

Arm Type Details

This is a surface-mounted vertical rod exit device. The top rod engages a top latch at the door head, providing secure two-point style latching behavior at the top while the less-bottom-rod configuration eliminates the lower rod and latch for a cleaner sill area.

Included Components

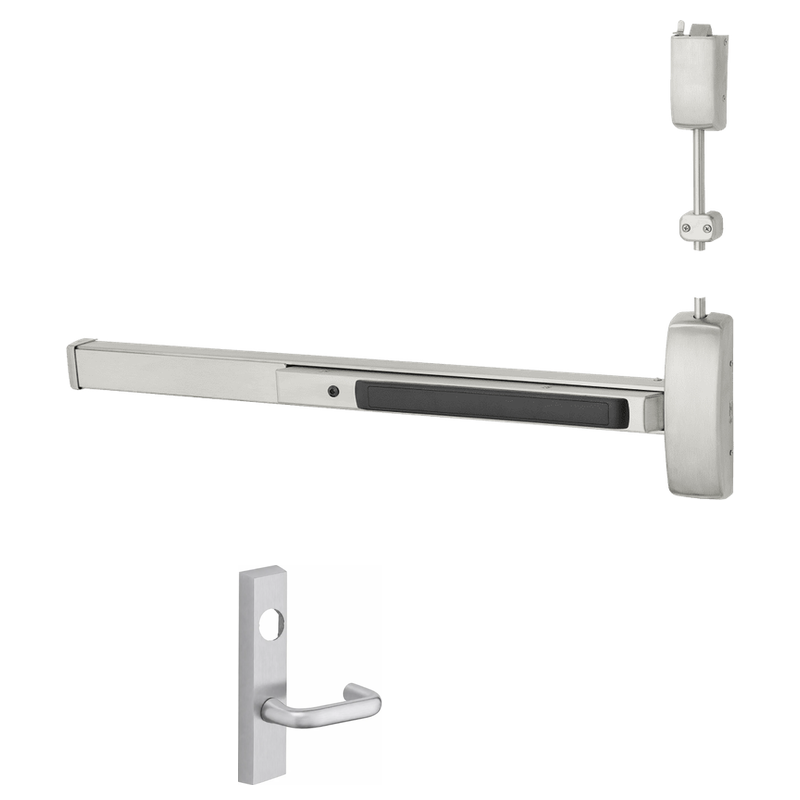

The device ships with the 8706 vertical rod exit mechanism, ETJ lever trim, top rod and latch hardware, and hex key dogging. The cylinder and bottom rod are not included and must be ordered separately as needed.
