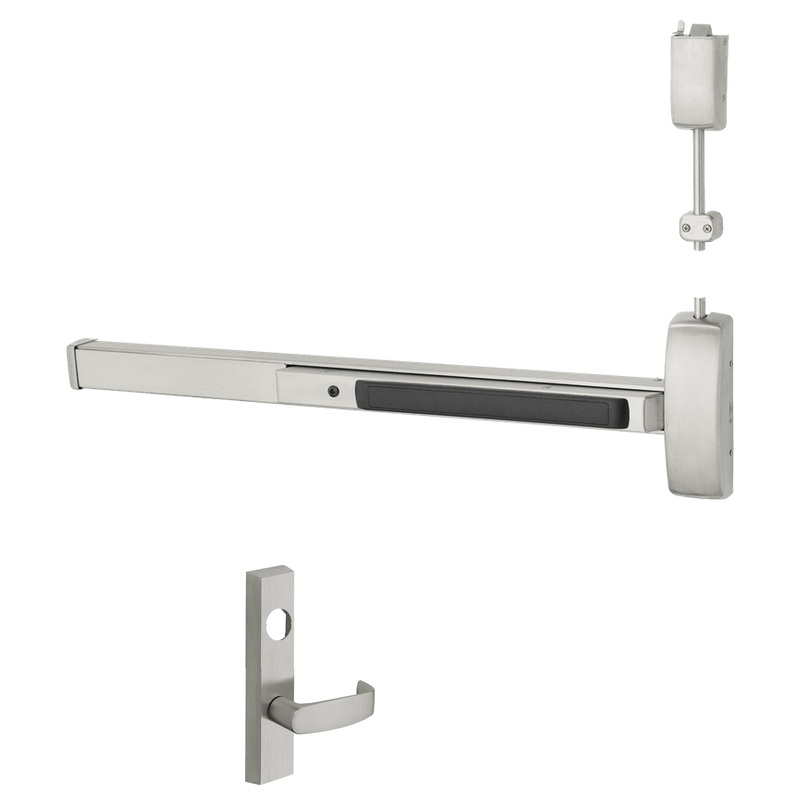

Sargent LC-NB-8706-F-ETL-96 Surface Vertical Rod Exit Device, Storeroom Function, Less Bottom Rod, For 33-36 Inch Width, 96 Inch Height Door, Less Cylinder, Hex Key Dogging

The Sargent LC-NB-8706-F-ETL-96 is a Grade 1 surface vertical rod exit device engineered for demanding commercial and institutional openings. Designed for 33–36 inch wide doors measuring up to 96 inches in height, this fire-rated device operates in storeroom function with the ET-L lever trim, keeping the outside lever locked while allowing free egress at all times. It ships less bottom rod (LBR) for cleaner floor clearance and easier maintenance, and less cylinder (LC) so you can supply your own keying. Hex key dogging lets authorized staff hold the latch retracted for push/pull traffic during busy periods.

Features

• Grade 1 surface vertical rod exit device built for high-traffic commercial use.
• Fire-rated (F) construction suitable for labeled door and frame assemblies.
• Storeroom function keeps the outside lever locked at all times, with a key retracting the latch for entry.
• Less bottom rod (LBR) design reduces floor-level hardware and simplifies cleaning and upkeep.
• Less cylinder (LC) configuration accepts the cylinder of your choice for keying flexibility.
• Hex key dogging allows the device to be mechanically held in the dogged position.
• Sized for 33–36 inch wide doors and 96 inch tall openings.
• ET-L lever trim provides a durable, ADA-compliant operating surface.

Functional Details

In storeroom function (F06), the outside lever remains fixed and the latch is retracted by key only, while the inside push rail always permits free egress. Because this unit is less bottom rod, only the top rod and latch engage the frame.

• Outside lever is always locked.
• Latchbolt is retracted by key from the outside.
• Key cannot be removed unless the lever is in the locked position.
• Inside lever is always active for free egress.

Included Components

This order includes the 8706 surface vertical rod device chassis, ET-L lever trim, top rod and latch assembly, and hex key dogging hardware. The bottom rod and cylinder are not included and must be ordered separately as required.
