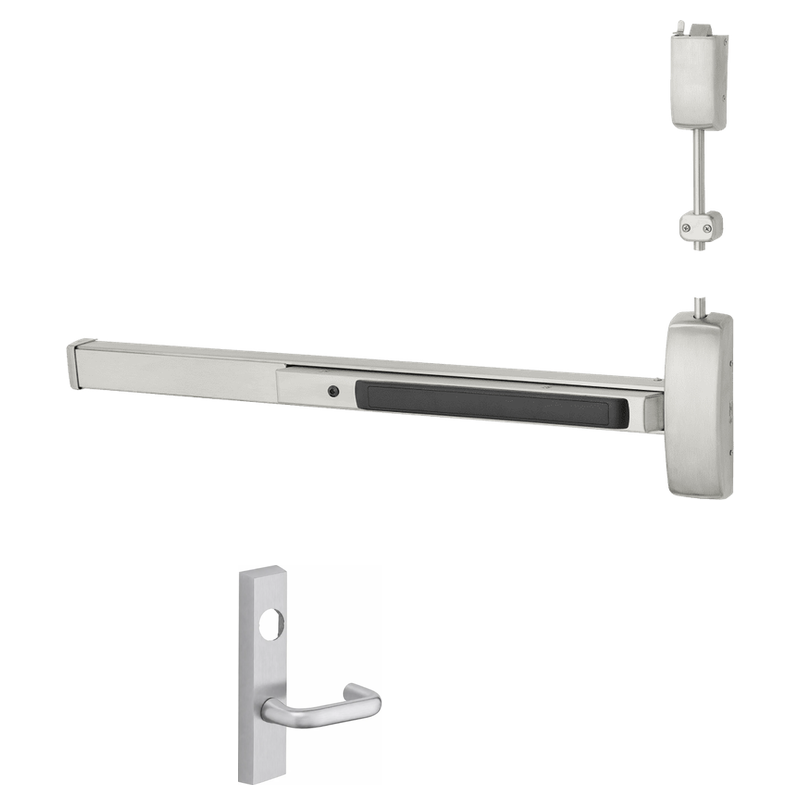

Sargent LC-NB-8713-F-ETJ-84 Surface Vertical Rod Exit Device, Classroom Function, For 33-36 Inch Width, 84 Inch Height Door, Less Cylinder, Hex Key Dogging, Less Bottom Rod

The Sargent LC-NB-8713-F-ETJ-84 is a surface-mounted vertical rod exit device built for demanding commercial openings that require reliable classroom-function control. Designed for fire-rated doors measuring 33 to 36 inches wide and up to 84 inches tall, this Grade 1 device pairs durable construction with the convenience of hex key dogging. The less bottom rod (NB) configuration keeps the lower portion of the door clear, reducing floor-level obstructions and maintenance. Supplied less cylinder so you can match your existing keying system, it includes the ETJ trim for consistent lever operation. This exit device is a dependable choice for schools, healthcare facilities, and other high-traffic environments.

Features

• Surface-mounted vertical rod design for secure latching at the top of the door.
• Classroom function (8713) allows controlled access through the exterior lever.
• Less bottom rod (NB) construction eliminates floor-level rod hardware for cleaner installation.
• Fire-rated (F) suitable for use on labeled fire door assemblies.
• Hex key dogging allows the latch to be held retracted for push-pull traffic in non-fire applications.
• Supplied less cylinder (LC) for integration with your facility's keying system.
• ETJ lever trim provides durable, comfortable operation.
• Sized for 33 to 36 inch door widths and 84 inch door heights.

Functional Details

The classroom function allows the exterior lever to be locked or unlocked by key, while the inside push bar always permits free egress. The less bottom rod design maintains top-latch security while removing the lower rod and latch assembly.

• Classroom function: Outside lever controlled by key. Latch bolt retracted by lever or key, and by inside push bar.
• Hex key dogging holds the push bar depressed and latch retracted for non-fire-rated openings.
• Less bottom rod provides top rod latching only.

Arm Type Details

The ETJ designation refers to the lever trim style supplied with this device, offering a classroom-function lever that operates the top latch for controlled entry while preserving free egress from the interior.

Included Components

This device ships as a complete surface vertical rod exit assembly with the top rod and latch mechanism, ETJ lever trim, and hex key dogging hardware. A cylinder is not included and must be ordered separately.
