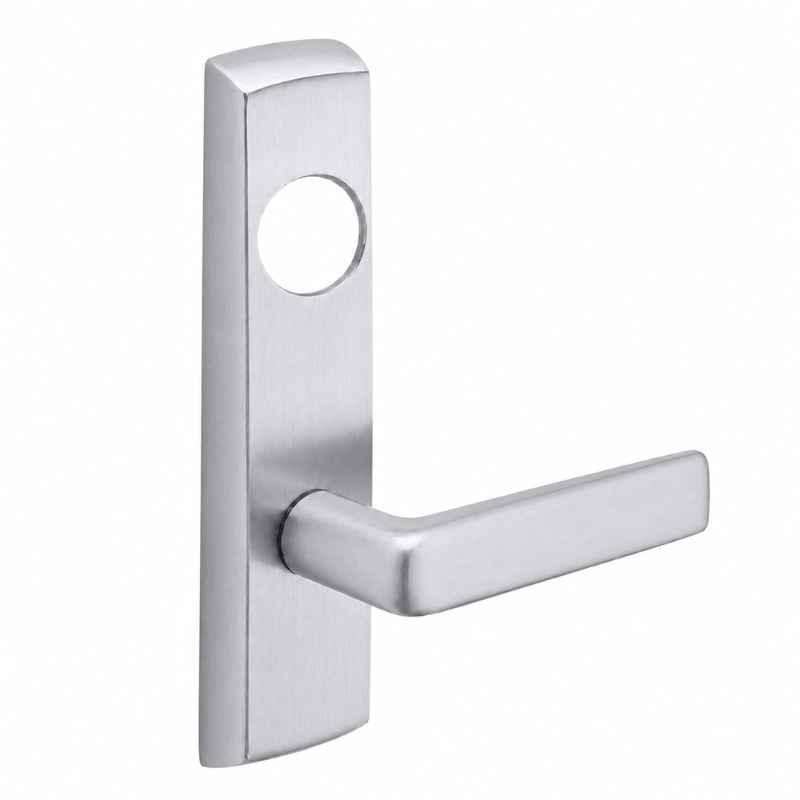

Sargent LC-P704-NEE Narrow Stile Exit Device Lever Trim, E Lever, Night Latch Function, Key Retracts Latch, For PE8304/PE8504/PE8804/PE8888/PE8904/PE9804 Series Exit Devices, Less Cylinder

The Sargent LC-P704-NEE narrow stile exit device lever trim is designed for use with compatible PE80 Series exit devices where secure outside access and dependable operation are required. This trim features the E lever design and a night latch function that allows entry by key while keeping the outside lever rigid when not unlocked. Supplied less cylinder, it gives you the flexibility to match existing keying requirements. Built for narrow stile door applications, this trim is a practical choice for aluminum storefront and similar openings that need durable access control paired with Sargent PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 series exit devices.

Features

• Designed for narrow stile door applications using compatible Sargent PE80 Series exit devices.

• Includes the E lever style for a clean, functional operating design.

• Night latch function keeps the outside lever rigid until entry is authorized by key.

• Key operation retracts the latch for controlled access from the outside.

• Supplied less cylinder to support field-selected keying and cylinder compatibility.

Functional Details

The NEE night latch trim function is intended for openings that require outside access by key only. In this configuration, the outside lever remains rigid, and authorized entry is gained when the key retracts the latch. This setup helps maintain security while still allowing controlled access from the exterior side of the door.

• Night latch trim function.

• Outside lever is rigid.

• Key retracts latch.

• Less cylinder.

• Used with PE8304, PE8504, PE8804, PE8888, PE8904, and PE9804 exit devices.

Included Components

This trim is supplied less cylinder. Cylinder and keying components are ordered separately to suit the opening requirements and existing master key system.
