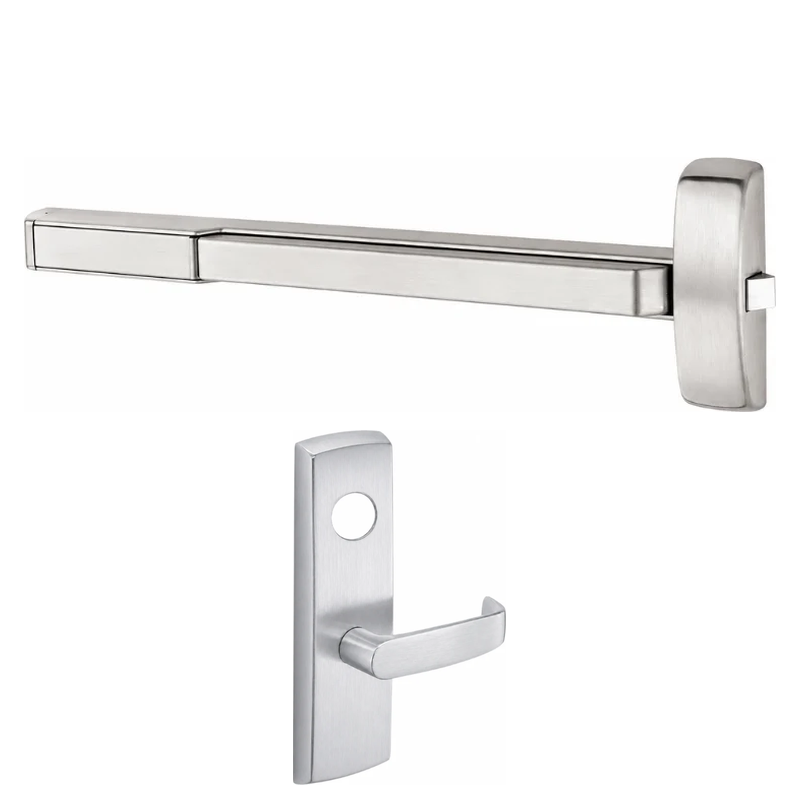

Sargent LC-PE8804G-WEL-US32D Wide Stile Rim Exit Device, Night Latch, WEL Lever Trim, For 43-48 Inch Width Door, Less Cylinder, Hex Key Dogging, 630 Satin Stainless Steel

The Sargent LC-PE8804G-WEL-US32D is a Grade 1 wide stile rim exit device built for demanding commercial openings measuring 43 to 48 inches wide. Configured for night latch function, it pairs a durable push rail mechanism with the WEL lever trim, allowing secure keyed entry from the outside while providing instant free egress from the inside. This unit ships less cylinder, giving you the flexibility to match your existing keyway, and features hex key dogging to hold the latch retracted for push/pull operation during high-traffic periods. Finished in Satin Stainless Steel (US32D/630), it offers lasting corrosion resistance and a clean, professional look.

Features

• Grade 1 rim exit device engineered for heavy-duty commercial use.
• Night latch function allows keyed access outside with free egress inside.
• Sized for doors from 43 to 48 inches in width.
• WEL lever trim provides reliable, comfortable keyed operation.
• Ships less cylinder for flexible keying to your facility standard.
• Hex key dogging holds the latch retracted for push/pull use.
• Satin Stainless Steel finish resists wear and corrosion.

Functional Details

The PE8804 operates as a night latch: depressing the push rail retracts the latchbolt for immediate egress, while outside access requires a key through the WEL lever trim. Hex key dogging allows the device to be mechanically held in the dogged position for continuous push/pull operation.

• Night Latch (04): Key retracts latch bolt. Pushpad always active for egress.

Included Components

This order includes the PE8804 rim exit device chassis, WEL lever trim, and mounting hardware. A cylinder is not included and must be ordered separately.
