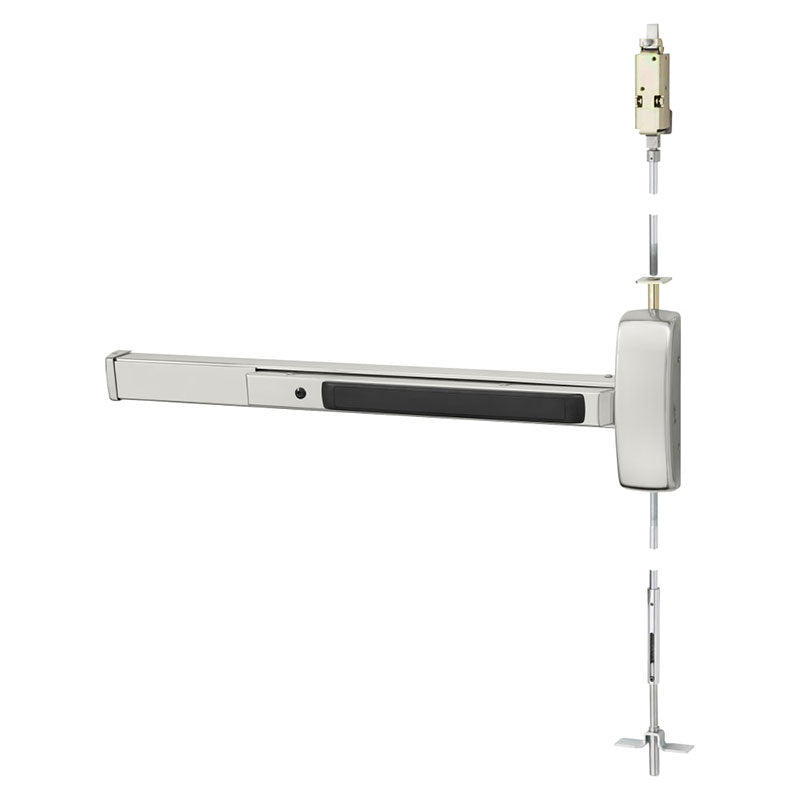

Sargent MD8610J-36x96-US32D Concealed Vertical Rod Exit Device
Sargent MD8610J-36x96-US32D Concealed Vertical Rod Exit Device
Sargent MD8610J-36x96-BSP Concealed Vertical Rod Exit Device
Sargent MD8610J-36x96-US10B Concealed Vertical Rod Exit Device
Sargent MD8610J-36x96-US10BE Concealed Vertical Rod Exit Device
Sargent MD8610J-36x96-WSP Concealed Vertical Rod Exit Device
All SARGENT Products

Sargent MD8610J-42 Concealed Vertical Rod Exit Device, Exit Only, Multi-Function, For 1 3/4" Thick Metal Doors, 37-42" Door Width, 84" up to 96" Door Ht

  • SKU: MD8610J4296US32DRHR
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$1,788.68/ea
Finish: US32D Satin Stainless Steel (630)
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent MD8610J-42 Concealed Vertical...
Quantity
–
+
From $1,788.68
Sargent ETL Trims For Sargent 8400 & ...
Quantity
–
+
From $465.75
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Total

The Sargent MD8610J is a 42" Concealed Vertical Rod Exit Device, with No Trim - Exit Only, and is a Multi-function device, with Hex Dogging.  This device is a J bar for 37"-42" wide doors, with door heights of 84" (7'ft) to 96" (8'ft), and is used with 1 3/4" thick Metal Doors.  We offer these devices in US32D Satin Stainless Steel, US10BE Dark Oxidized Satin Bronze equivalent, US10B Oxidized Dull Bronze, BSP Black Suede Powder Coat, and WSP White Suede Powder Coat finish.

Multi-Function Device: Trims below decide the function of the device;

706-4  - Key unlocks Trim, Trim retracts latch/Trim relocks when key is removed (accepts a Sargent #41 Cylinder)
710-4  - Dummy Trim: No outside operation (No Cylinder)
713-4 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715-4 - Passage Only (No cylinder)
773-4 - Fail-Safe: Power Off, Unlocks Lever (No Cylinder)
774-4 - Fail Secure: Power Off, Locks Lever (No Cylinder)

Features

  • Designed for standard width stile applications on metal doors
  • Concealed rods for security and aesthetics
  • Single and double door applications
  • Specify NB- for less bottom rod
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL305 (Panic) listed only
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Multi-Function
Device Length 42"
Hand LHR or RHR
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 4 1/2"
Door Material Metal
Door Width 37" to 42"
Door Height 84" to 96"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices
Product Cut Sheet
