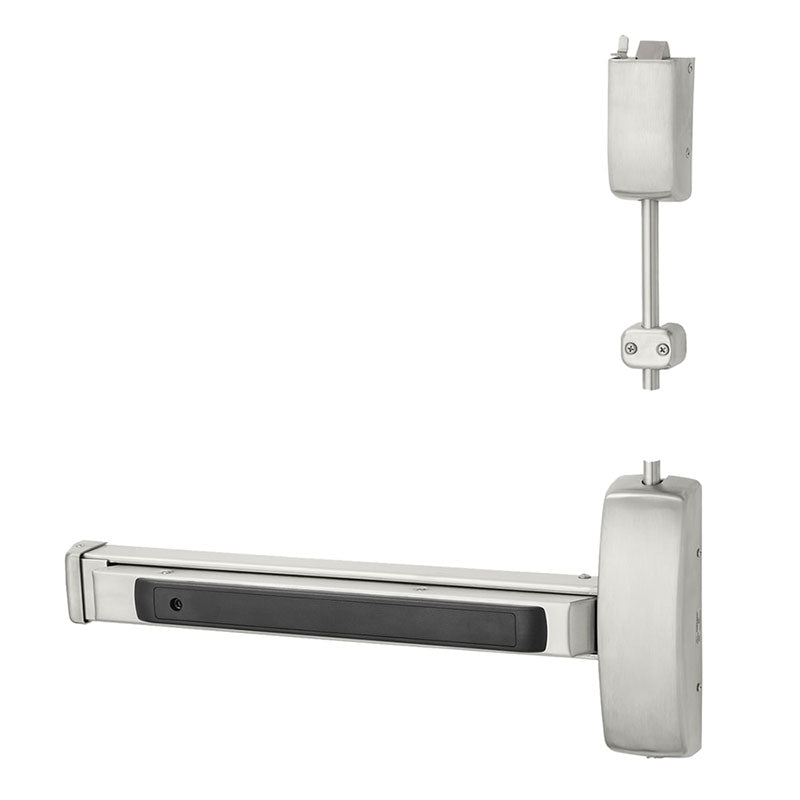

Sargent NB-8710-E-96 Surface Vertical Rod Exit Device, Less Bottom, Exit Only, 96" Door Height, 24"-32" Dr Width

  • SKU: NB8710E96US10BRHR
$1,672.86/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US10B Oxidized Dull Bronze (613)
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent NB-8710-E-96 Surface Vertical...
Quantity
–
+
From $1,565.55
Sargent 710-ETL Dummy Lever Trim Non ...
Quantity
–
+
From $503.50
Total

The Sargent NB-8710-96-E is a less bottom surface vertical rod exit device with no Outside Operation Exit Only. The NB-8710-96 is for a 96" door height single point top latching for a 24"-32" door width (E bar is 32" long, and can be cut down to 24") and comes in US32D/630 Satin Stainless Steel And US10B/613 Oil-Rubbed Bronze Finish options

Features
 • Single point top latching • Top latch bolt projection adjustable through center case • ANSI/BHMA A156.3 - Grade 1 • UL10C (Fire) and UL305 (Panic) Listed • Tripping potential removed - no bottom strike • Rods are 1/2" (13mm) brass, bronze, or stainless steel
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No

Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Exit Only
Device Length 32"
Hand Optional
Mechanical Options Less Bottom Rod
Top Strike 646
Includes Trim No
Minimum Stile Size 4 1/2" with Trim, 3 1/2" without Trim
Door Material Metal or Wood
Door Width 24" - 32"
Door Height 96"
Door Thickness 1 3/4" to 2 1/4"
Fire Rated No
Product Type Surface Vertical Rod Exit Devices
