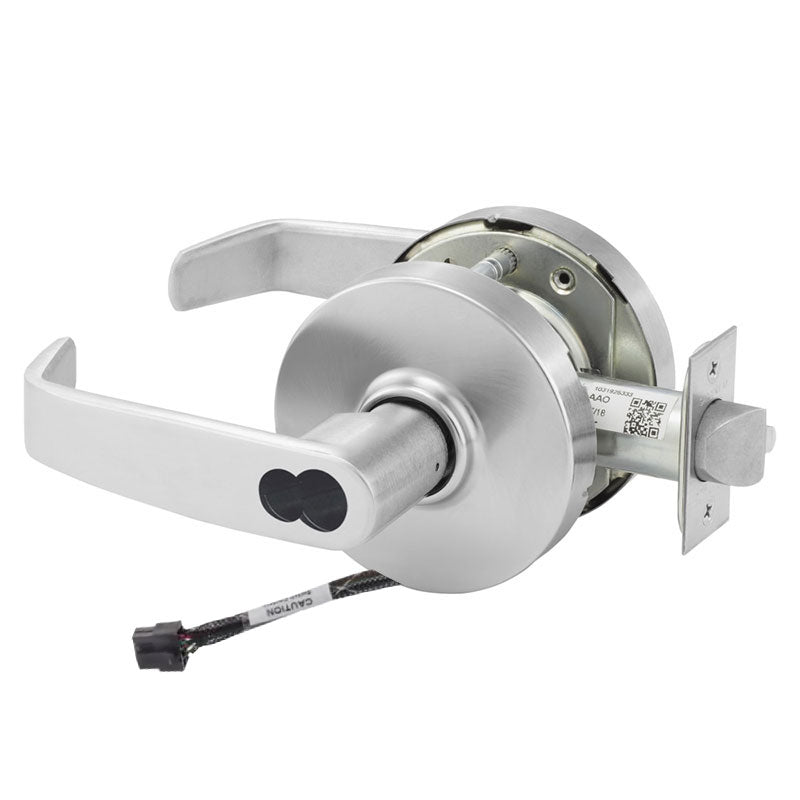

Sargent RX-60-10XG70-LL Fail Safe Cylindrical Electromechanical Lock - Request to Exit, LFIC Less Core, L Rose, L Lever, Grade 1

  • SKU: RX6010XG70LLUS26D

Sargent RX-60-10XG70-LL Fail Safe Cylindrical Electromechanical Lock - Request to Exit, LFIC Less Core, L Rose, L Lever, Grade 1

  • SKU: RX6010XG70LLUS26D
Sale price$885.56/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
Finish: US26D Satin Chrome (626)

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent RX-60-10XG70-LL Fail Safe Cyl...
Quantity
+
Sale priceFrom $885.56
Sargent 6300 LA LFIC Core, LA Keyway,...
Quantity
+
Sale price$98.69
Total

The Sargent RX-60-10XG70-LL is a Cylindrical Electromechanical Lock that incorporates the Fail-Secure Function, ensuring that the outside lever locks in the event of a power failure and a Request to Exit Feature. The 60 Option is 60 LFIC Interchangeable core, less core. It is equipped with an L-shaped rose, a L-shaped lever, a 2-3/4" backset, and a 4-7/8" strike. Sargent RX-60-10XG70-LL is available in voltage options of 12VDC or 24VDC, and are field-selectable, fail-safe, and fail-secure.

Sargent 10XG70 and 10XG70 Functions

Key Features:

  • 70 - Fail Safe Function
    - Power Off Unlocks Lever
    - Inside lever is always free
    - Latchbolt retracted by key outside when locked electrically
    - Guardbolt deadlocks latch bolt
  • For doors -1-3/4" thick adjusts to 2"
  • Backset-2-3/4"
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw

RX- Monitoring of Inside Lever

  • Patent Pending design
  • Non-Contact Switch
  • Bidirectional lever rotation
  • Non-handed design
  • The internal switch offers N/O & N/C
  • Modular wire harness with ElectroLynx ® 8-pin connector
  • Available functions: 04, 05, 15, 37, 70 & 71

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.



Features

  • Compatible with several security key systems (Degree, Signature, KESO, etc.)
  • Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
  • Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
  • Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
  • Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
  • Innovative push/turn button design prevents damage from door stops and walls
  • 26 mechanical functions offered
  • Available in 14 finishes with multiple lever designs
  • Optional Microshield ® antimicrobial coating available
  • Lockbody design supports all cylinder formats - from fixed to interchangeable core
  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Complements the look of any design style
  • Minimizes inventory stocking requirements
  • Simplifies installation in new and retrofit applications
  • Integrates with new or existing facility key systems

    Manufacturer

    Sargent

    Grade

    Grade 1

    Origin

    USA

    Unit of Measure

    Each

    Base Material

    Brass or Bronze

    BAA Qualified

    Yes

    Limited Warranty

    7 Years

    Fire Rated

    3 Hours {A}




    Function 70-Electromechanical Fail Safe
    Rose/Escutcheon Design L - Rose
    Lever L Lever
    Cylinder Type LFIC
    Hand Non Handed
    Door Thickness 1-3/4" to 2"
    Latch Number 10-3192
    Latch Type Dead Latch (Guarded)
    Latch Backset Dim 2-3/4"
    Lock Face Size 2-1/4" X 1-1/8"
    Bolt Projection 1/2"
    Strike Number 808
    Strike Type ASA
    Strike Height 4-7/8"
    Strike Width 1-1/4"
    Screws Combination
    Power Hard Wired
    Operating Voltage 12VDC
    Amp Draw 500mA
    Switch Type RX
    Product Type Electric Cylindrical Lock
