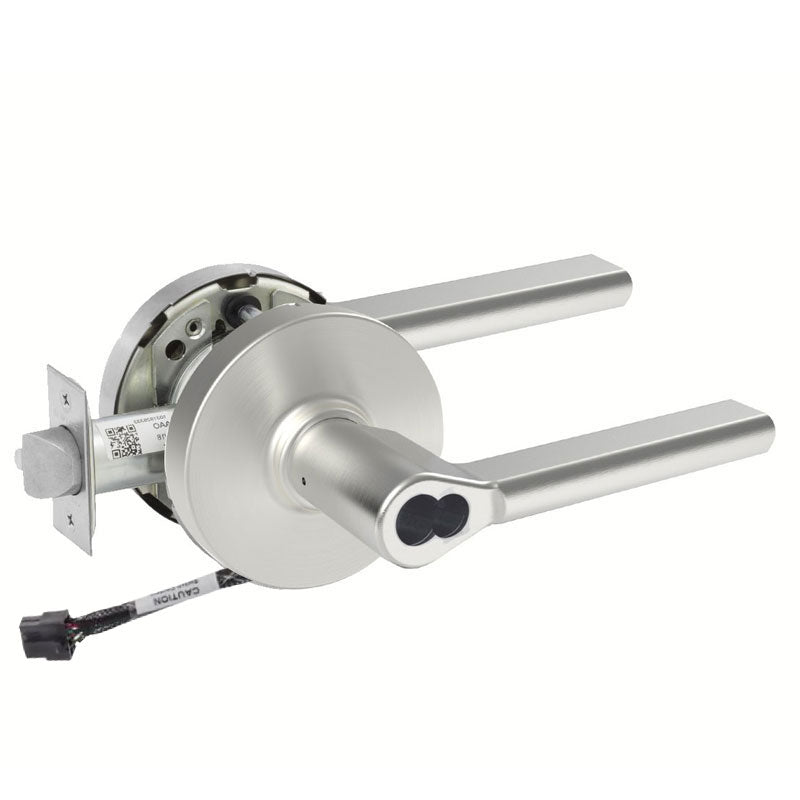

Sargent RX-60-10XG70-LMD-LFIC Cylindrical Electromechanical Lever Lockset, Fail Safe, Request to Exit, LFIC Less Core, L Rose, B Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

The Sargent RX-60-10XG70-LMD is a Cylindrical Electromechanical Lock that incorporates the Fail-Secure Function, ensuring that the outside lever locks in the event of a power failure and a Request to Exit Feature. The 60 Option is 60 LFIC Interchangeable core, less core. It is equipped with an L-shaped rose, a MD-shaped lever, a 2-3/4" backset, and a 4-7/8" strike. Sargent RX-60-10XG70-LMD is available in voltage options of 12VDC or 24VDC, and are field-selectable, fail-safe, and fail-secure.

Key Features:

• 70 - Fail Safe Function
  - Power Off Unlocks Lever
  - Inside lever is always free
  - Latchbolt retracted by key outside when locked electrically
  - Guardbolt deadlocks latch bolt

• For doors -1-3/4" thick adjusts to 2"
• Backset-2-3/4"
• Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
• Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw

RX- Monitoring of Inside Lever

• Patent Pending design
• Non-Contact Switch
• Bidirectional lever rotation
• Non-handed design
• The internal switch offers N/O & N/C
• Modular wire harness with ElectroLynx ® 8-pin connector
• Available functions: 04, 05, 15, 37, 70 & 71

10X-Line Bored Lever Locks

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.

Features

• Compatible with several security key systems (Degree, Signature, KESO, etc.)
• Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
• Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
• Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
• Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
• Innovative push/turn button design prevents damage from door stops and walls
• 26 mechanical functions offered
• Available in 14 finishes with multiple lever designs
• Optional Microshield ® antimicrobial coating available
• Lockbody design supports all cylinder formats - from fixed to interchangeable core
• Provides maximum resistance to vandalism and other malicious attacks
• Certified above & beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility key systems
