Sargent RX-60-10XG71-LP-LFIC Cylindrical Electromechanical Lever Lockset, Fail Secure, Request to Exit, LFIC Less Core, Field Reversible, "L" Rose, "P" Lever, 2-3/4 Backset, 4-7/8 Strike, Grade 1

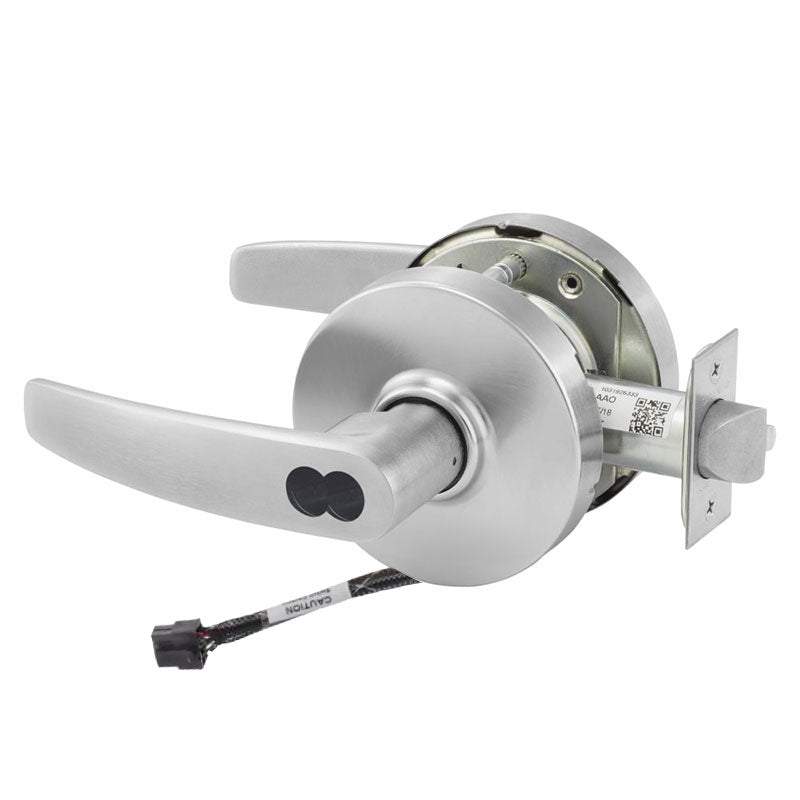

The Sargent RX-70-10XG71-LB is a Cylindrical Electromechanical Lock with a Fail Secure Function, enabling the outside lever to lock during a power failure and has a Request to Exit Feature. The 70 Option is 70 SFIC Small Format Interchangeable core, less core. It features an L-shaped rose, a B-shaped lever, a 2-3/4" backset, and a 4-7/8" strike, and is available in voltage options of 12VDC or 24VDC. Sargent RX-70-10XG71-LB Locks are field-selectable, fail-safe, and fail-secure.
Key Features:
- 71 - Fail Secure Function
- Power Off Unlocks Lever
- Inside lever is always free
- Latchbolt retracted by key outside when locked electrically
- Guardbolt deadlocks latch bolt
- For doors -1-3/4" thick adjusts to 2"
- Backset-2-3/4"
- Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip
- Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw
RX- Monitoring of Inside Lever
- Patent Pending design
- Non-Contact Switch
- Bidirectional lever rotation
- Non-handed design
- The internal switch offers N/O & N/C
- Modular wire harness with ElectroLynx ® 8-pin connector
- Available functions: 04, 05, 15, 37, 70 & 71
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
