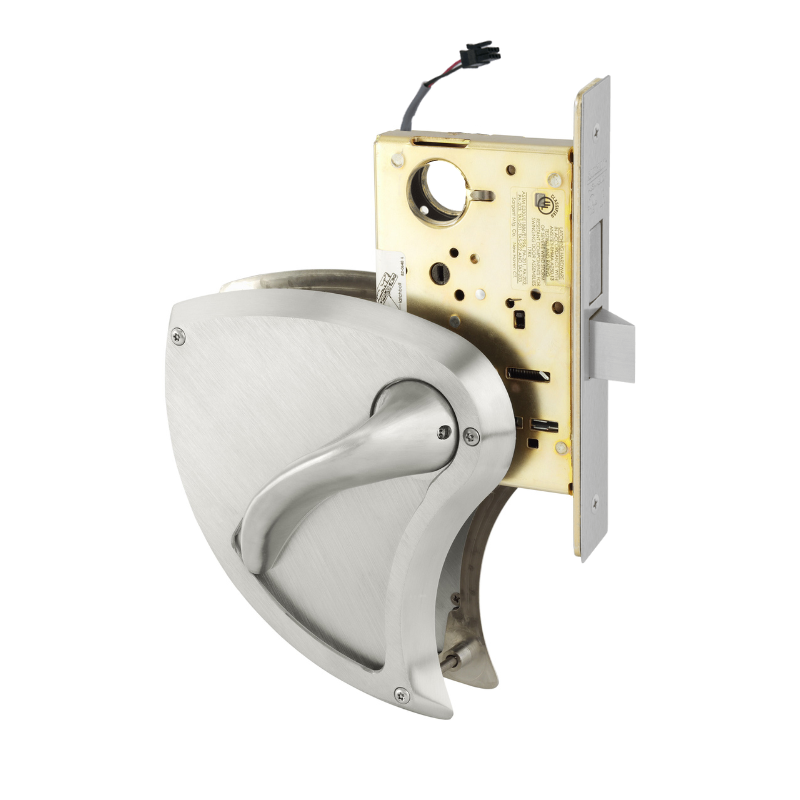

Sargent RX-8225-BHW-US32D-LC Behavioral Health Dormitory Or Exit Function Mortise Lock, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8225-BHW-US32D-LC is a Grade 1 Behavioral Health mortise lock designed for dormitory or exit applications. It features BHW trim, an integrated "RX" request to exit switch, and comes without a cylinder for customization. Constructed from satin stainless steel, the lock is field reversible to suit diverse installation needs.

• Dormitory or Exit Function:
  • Key outside or thumbturn inside retracts and projects deadbolt

  • Trim from either side retracts latchbolt, when the deadbolt is in the retracted position

  • Trim outside is locked, when the deadbolt is projected

  • When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
