Sargent RX-8237-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

  • SKU: RX8237BHWUS32DLHLC
Sargent RX-8237-BHW-US32D-LC
Sargent RX-8237-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel
Sargent RX-8237-BHW-US32D-LC
Sargent RX-8237-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel
All SARGENT Products

Sargent RX-8237-BHW-US32D-LC Behavioral Health Mortise Lock, Classroom Function, BHW Trim, Request To Exit Switch, Less Cylinder, Satin Stainless Steel

  • SKU: RX8237BHWUS32DLHLC
$1,876.79/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent RX-8237-BHW-US32D-LC Behavior...
Quantity
–
+
$1,876.79
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From $118.51
Total

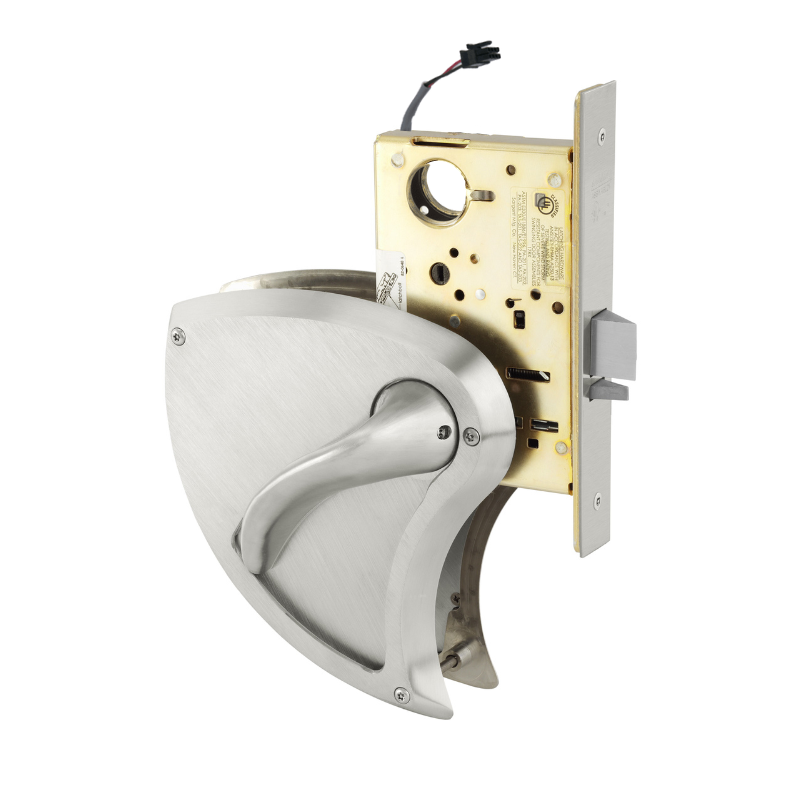

Sargent 8237-BHW-US32D-LC Behavioral Health Classroom Function Mortise Lock, Key Retracts Latch, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8237-BHW-US32D-LC Behavioral Health Mortise Lock features a classroom function with a latch that retracts via key. It comes with BHW trim, excludes the cylinder, meets Grade 1 standards, is field reversible, and is finished in 630 satin stainless steel.

  • Classroom Function:
    • Key outside retracts latchbolt, also locks & unlocks outside trim
    • Trim inside always retracts latchbolt
    • Auxiliary deadlatch
  • RX- option — Request-to-Exit or Enter Signaling Switch
    • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 37 Classroom Function
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
