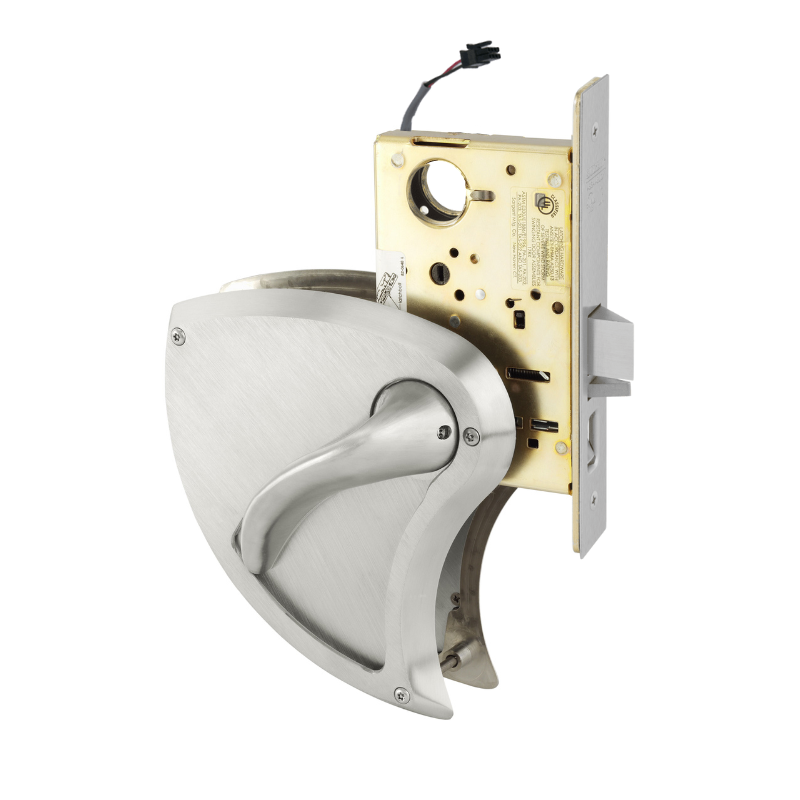

Sargent RX-8255-BHW-US32D-LC Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent RX-8255-BHW-US32D-LC is a Grade 1 Behavioral Health mortise lock designed for office or entry functions. Featuring a key that retracts the latch and equipped with the BHW trim and an "RX" request-to-exit switch, this lock is field reversible and comes less cylinder. Finished in 630 Satin Stainless Steel, it ensures durability and security in demanding environments.

• Office or Entry Function:
  • Key outside retracts latchbolt

  • Trim inside always retracts latchbolt, outside trim remains locked

  • Trim outside is locked & unlocked by the toggle only

  • Auxiliary deadlatch
• RX- option — Request-to-Exit or Enter Signaling Switch
  • Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
