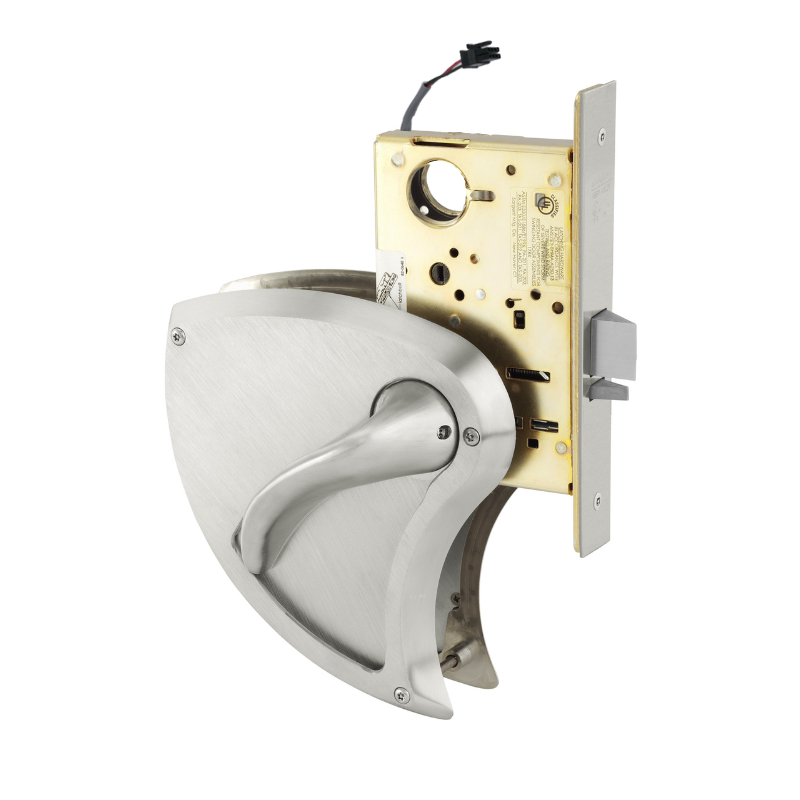

Sargent RX-8270-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder, Fail Safe 24VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent RX-8270-BHW-24VDC-US32D-LC is a Behavioral Health electrified mortise lock featuring BHW trim and a single cylinder design. It operates as a fail-safe mechanism powered by 24VDC and includes the "RX" request-to-exit switch. This Grade 1, field-reversible lock comes without a cylinder and is finished in 630 satin stainless steel.
Electrical (Fail Safe) Function:
70 function — Power ON, locks outside lever
Key outside retracts latchbolt
Lever outside retracts latchbolt, except when locked
Lever outside can only be locked electronically
Lever inside always retracts latchbolt
Auxiliary deadlatch
RX- option — Request-to-Exit or Enter Signaling Switch
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
