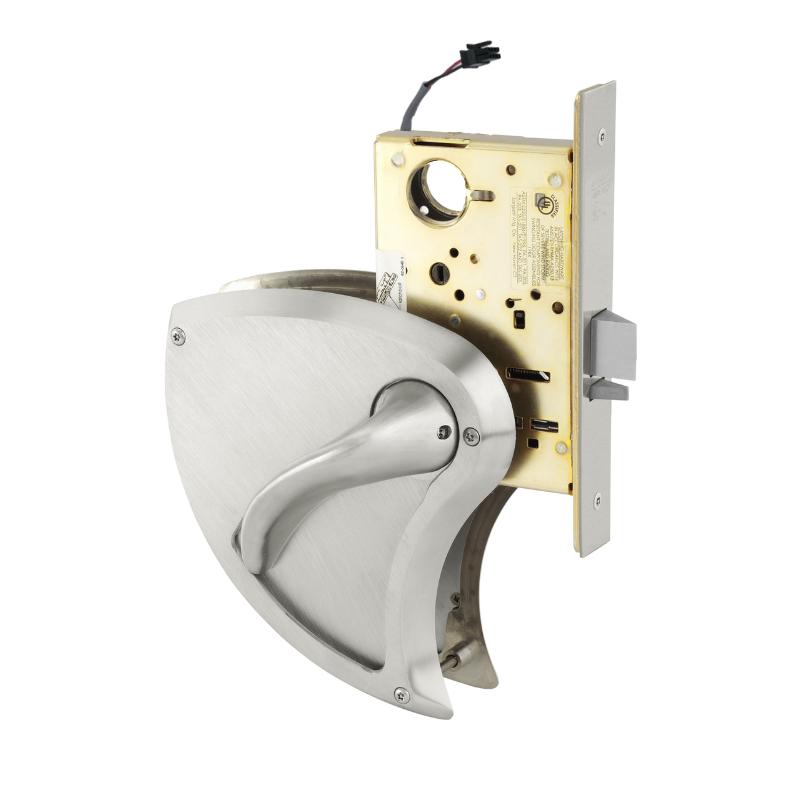

Sargent RX-8271-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder Fail Secure 24VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent RX-8271-BHW-24VDC-US32D-LC is a Grade 1 Behavioral Health electrified mortise lock featuring a BHW trim and a single-cylinder fail-secure configuration operating at 24VDC. It includes the "RX" Request To Exit switch and comes without a cylinder, offering field-reversible installation. Finished in durable 630 satin stainless steel, this lock is designed for reliable security in sensitive environments.
Electrical (Fail Safe) Function:
71 function — Power ON, unlocks outside lever
Key outside retracts latchbolt
Lever outside retracts latchbolt, except when locked
Lever outside can only be locked electronically
Lever inside always retracts latchbolt
Auxiliary deadlatch
RX- option — Request-to-Exit or Enter Signaling Switch
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
