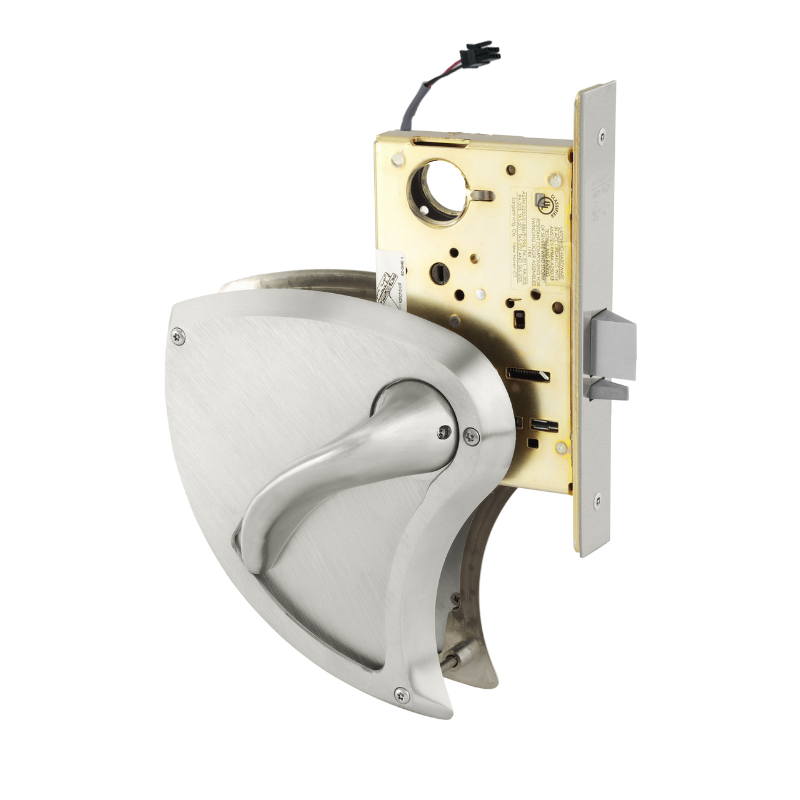

Sargent RX-8272-BHW-12VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Safe 12VDC, "RX" Request To Exit Switch, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent RX-8272-BHW-12VDC-US32D-LC is a Grade 1 Behavioral Health Electrified Mortise Lock featuring BHW trim and a double cylinder fail-safe mechanism operating at 12VDC. It includes the "RX" Request To Exit switch and comes without a cylinder. Designed for field reversibility, it offers reliable durability and security in a 630 Satin Stainless Steel finish.
Electrical (Fail Safe) Function:
72 function — Power ON, locks both levers
Key on either side retracts latchbolt
Lever from either side retracts latchbolt, except when levers are locked
Both Levers can only be locked & unlocked electronically
Levers can not be locked separately, only together
Auxiliary deadlatch
RX- option — Request-to-Exit or Enter Signaling Switch
Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
