Description

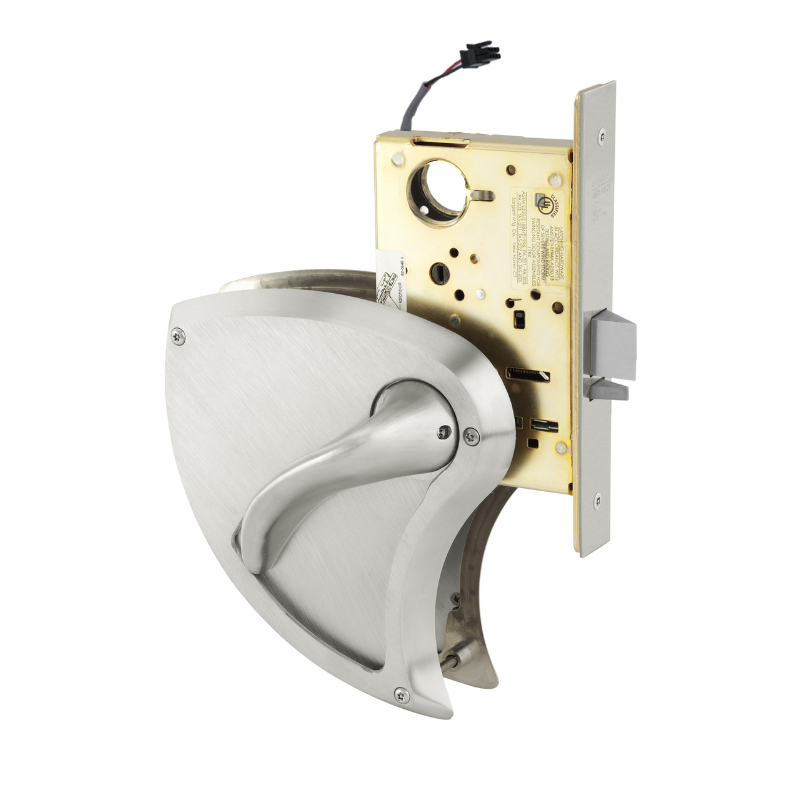

Sargent 8273-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Secure 24VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent 8273-BHW-24VDC-US32D-LC is a Behavioral Health electrified mortise lock featuring BHW trim. It offers a double cylinder fail-secure design operating at 24VDC, with no cylinder included. This Grade 1 lock is field reversible and finished in 630 satin stainless steel, ensuring durability and adaptable installation for healthcare environments.
- Electrical (Fail Safe) Function:
- 73 function — Power ON, unlocks both levers
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- RX- option — Request-to-Exit or Enter Signaling Switch
- Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)
- Key on either side retracts latchbolt
- Lever from either side retracts latchbolt, except when levers are locked
- Both Levers can only be locked & unlocked electronically
- Levers can not be locked separately, only together
- Auxiliary deadlatch
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 73 Electrical (Fail Secure) |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type |
Less Cylinder |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
